【12V & 24V MPPT with 99% Tracking Technology】 Redodo 12V / 24V MPPT solar charge controller features advanced tracking technology with tracking efficiency up to 99% and peak conversion efficiency up to 98%. It can track the maximum power point of the array to get the maximum power to charge the battery and load.

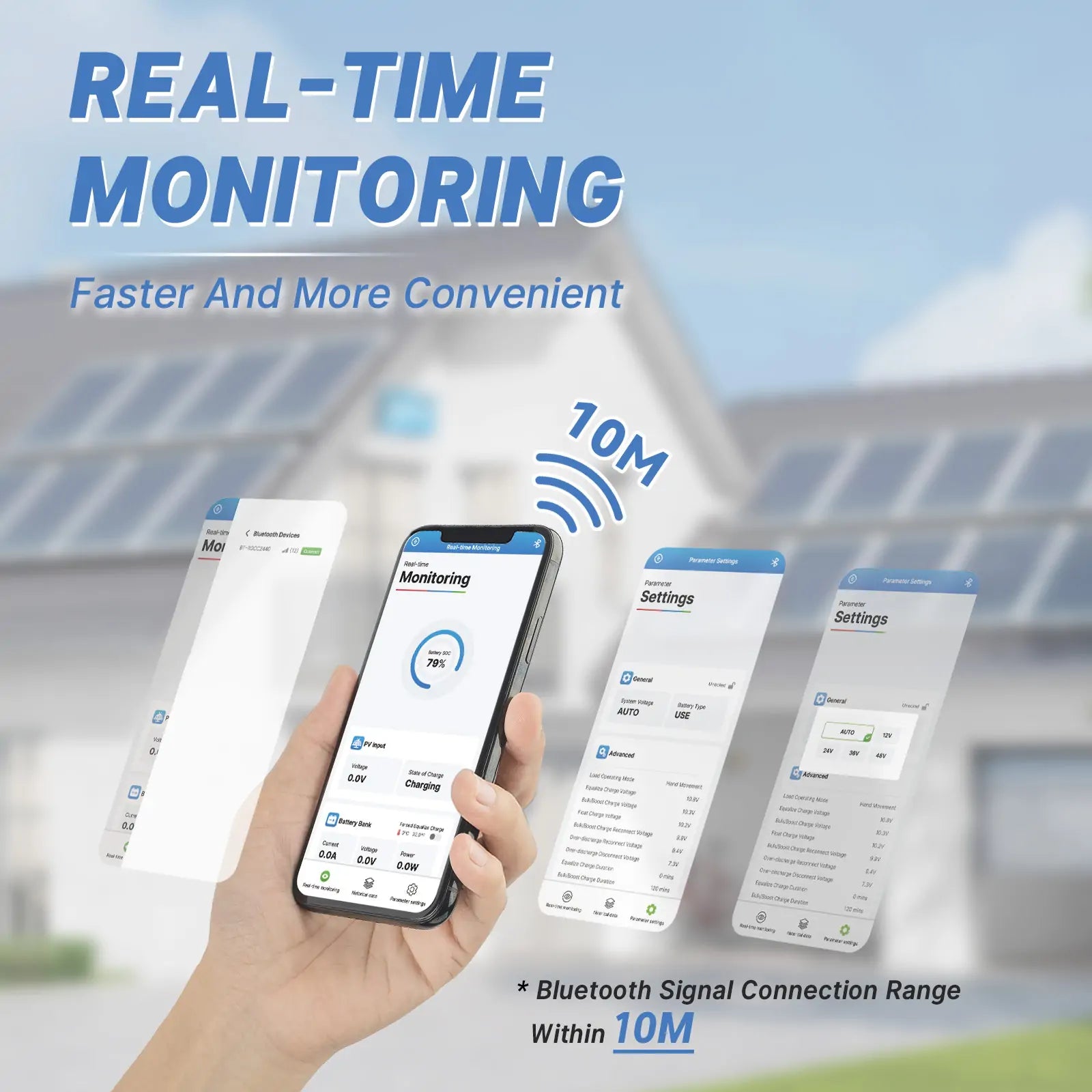

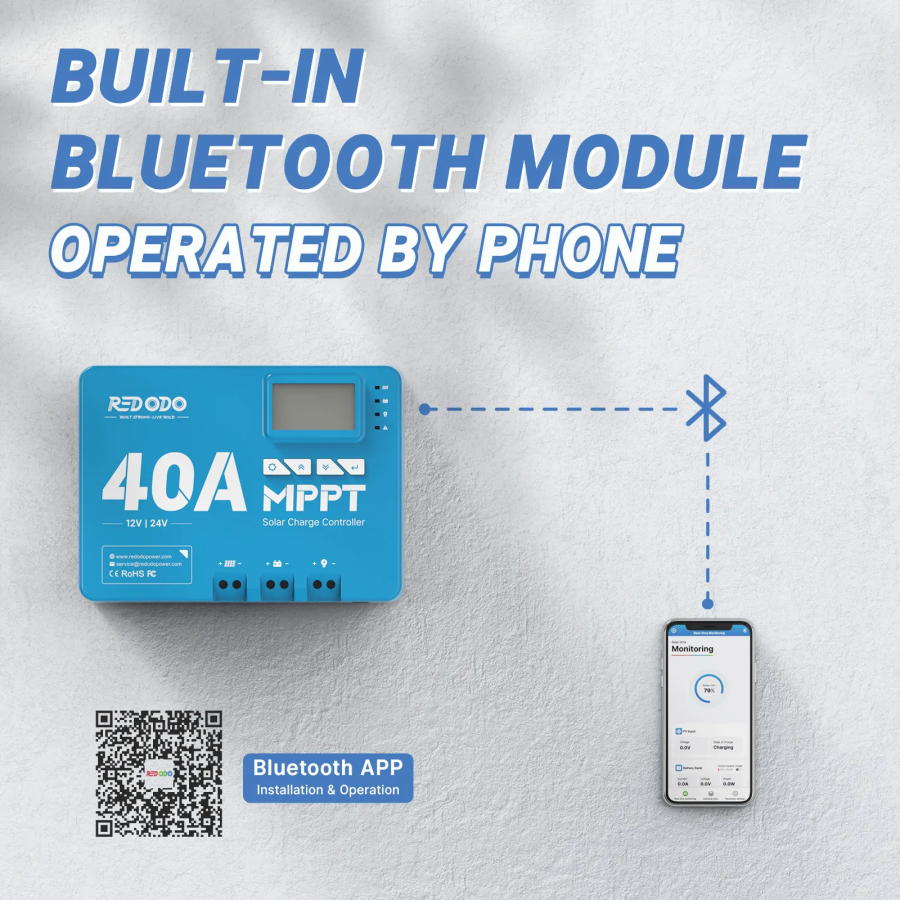

【Convenient Built-in Bluetooth Module】 Redodo 40 Amp solar charge controller could communicate by built-in Bluetooth module or by connect to RJ12 port (included in the package) through RS485, which allow users to remotely monitor the real-time status of solar panels, batteries and loads, and the built-in Bluetooth module makes operation even easier.
【LCD Display & LED Monitoring】 Redodo 12V & 24V MPPT solar charge controller is equipped with an LCD screen and LED indicators, and has four operating buttons. The display screen provides a clearer view of the data and the LEDs are useful for monitoring the status of each device.
【Support Multiple Types of Battery Usage】 Redodo MPPT solar power charge controller has LiFePO4 battery charging mode by default. It can be compatible with other types of batteries by adjusting the parameters, such as: FLD, AGM sealed, gel type lead-acid batteries.
【Environmentally and Heat Dissipating Multifunctional Shell】Redodo 12V / 24V MPPT solar charge controller is made of aluminum alloy to ensure heat dissipation while reducing power loss, and the material is safe and environmentally friendly. The controller has built-in protection for Reverse Connection, Overpower, Overvoltage, Short-circuit, Over-temperature, which provides safety protection for the whole solar system.
System Voltage: 12V/24V
Battery Voltage: 9V to 32V
Max. Solar Input Voltage：100V
Rated Charging Current：40A
Rated Load Current: 20A

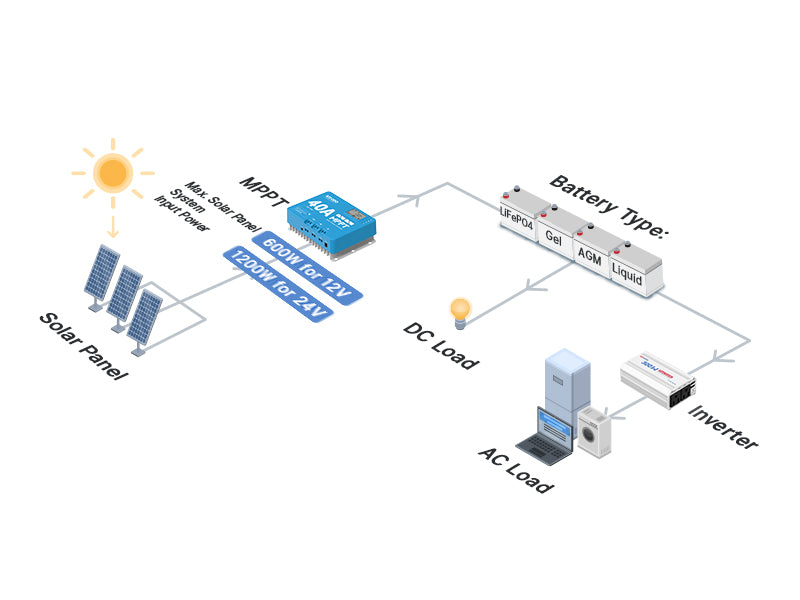

Max. Solar Panel System Input Power: 600W for 12V / 1200W for 24V
Protection Degree: IP32
Weight: 4.41lb / 2kg
Communication Method: RS485(RJ12) / Inbuilt BT
Altitude: ≤3000m
Dimensions: L9.65*W7.07*H3.25 inch / L245*W180*H82.5 mm
