Power Trolling Motors All Day — Smallest 24V Battery in Group 31
Designed specifically for 70–100 lb thrust trolling motors, this 24V 100Ah Group 31 lithium battery delivers dependable power in a compact footprint. Its high-density design provides extended runtime and a space-saving fit, giving anglers the confidence to fish longer without sacrificing valuable boat storage.

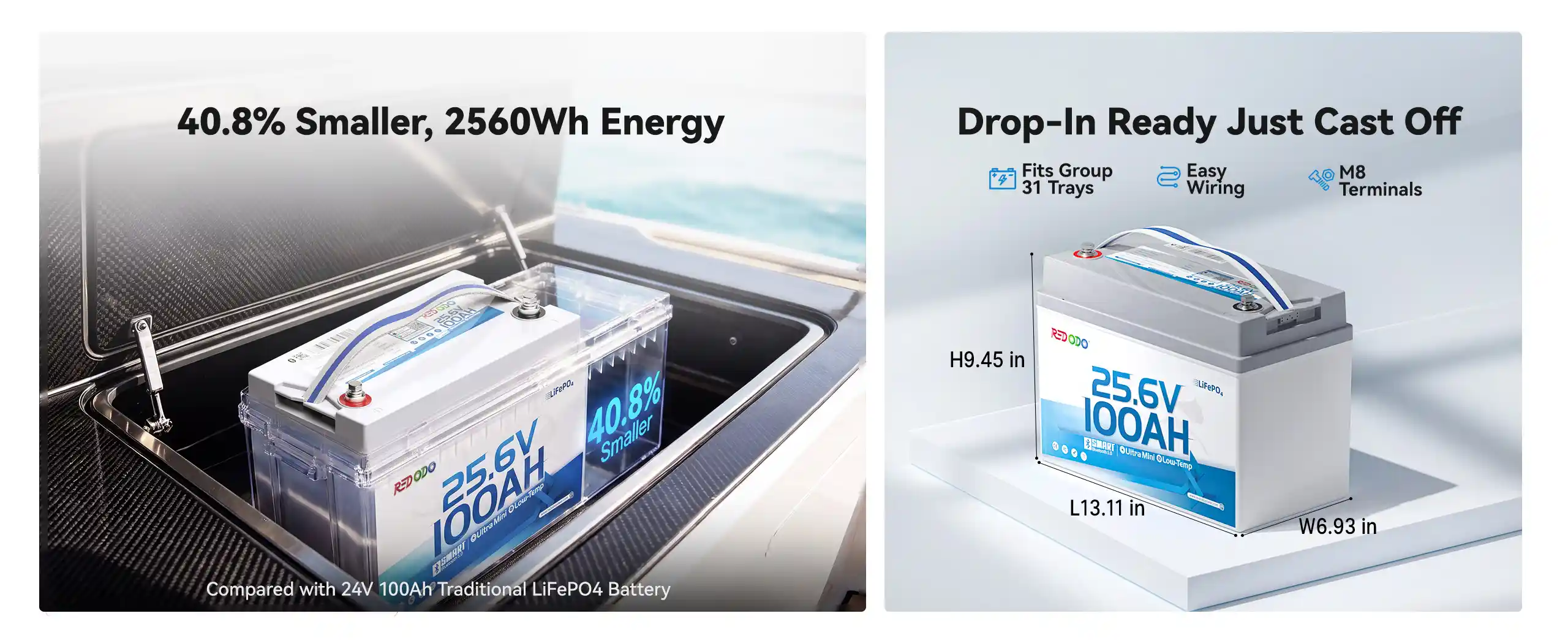

More Power Per Inch™ —— Group 31 Size. Same 100Ah Capacity.
Redodo combines high energy density, lightweight construction, intelligent monitoring, and powerful output in one compact 24V solution—built to maximize every inch of your boat.
Your Battery Information, Always Within Reach
Stay connected with your battery wherever your fishing day takes you. Bluetooth 5.0 monitoring through the Redodo App lets you check key battery information in real time, including state of charge/discharge, voltage, current, charging status.
Designed Around the Needs of 24V Trolling Motors
From bass boats to pontoons, 70–100 lb thrust trolling motors demand consistent and reliable power. Redodo's 24V 100Ah lithium battery provides the energy capacity needed for long days on the water, helping anglers spend more time fishing and less time managing batteries.

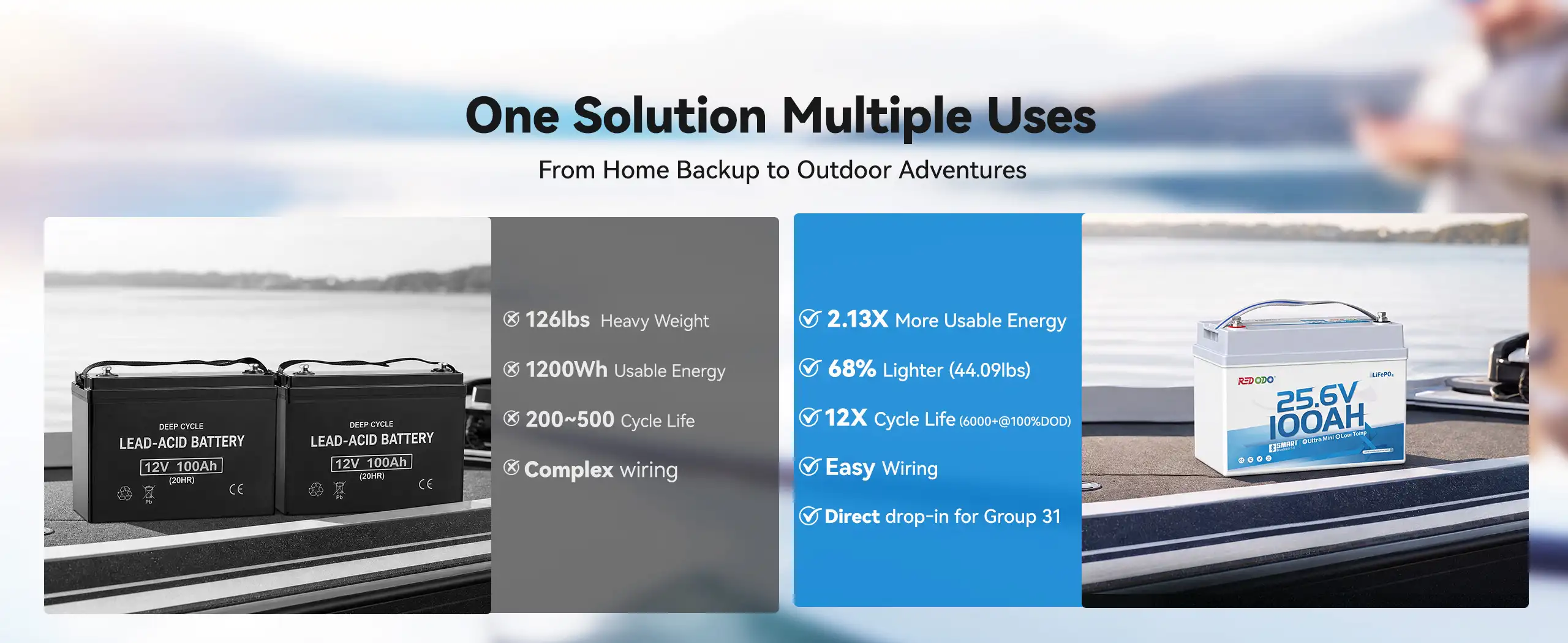

Replace Two Heavy Lead-Acid Batteries with One Lithium Upgrade
One Redodo 24V lithium battery replaces two 12V lead-acid batteries connected in series, reducing weight, simplifying installation, and freeing valuable space for the gear you actually need on the water.

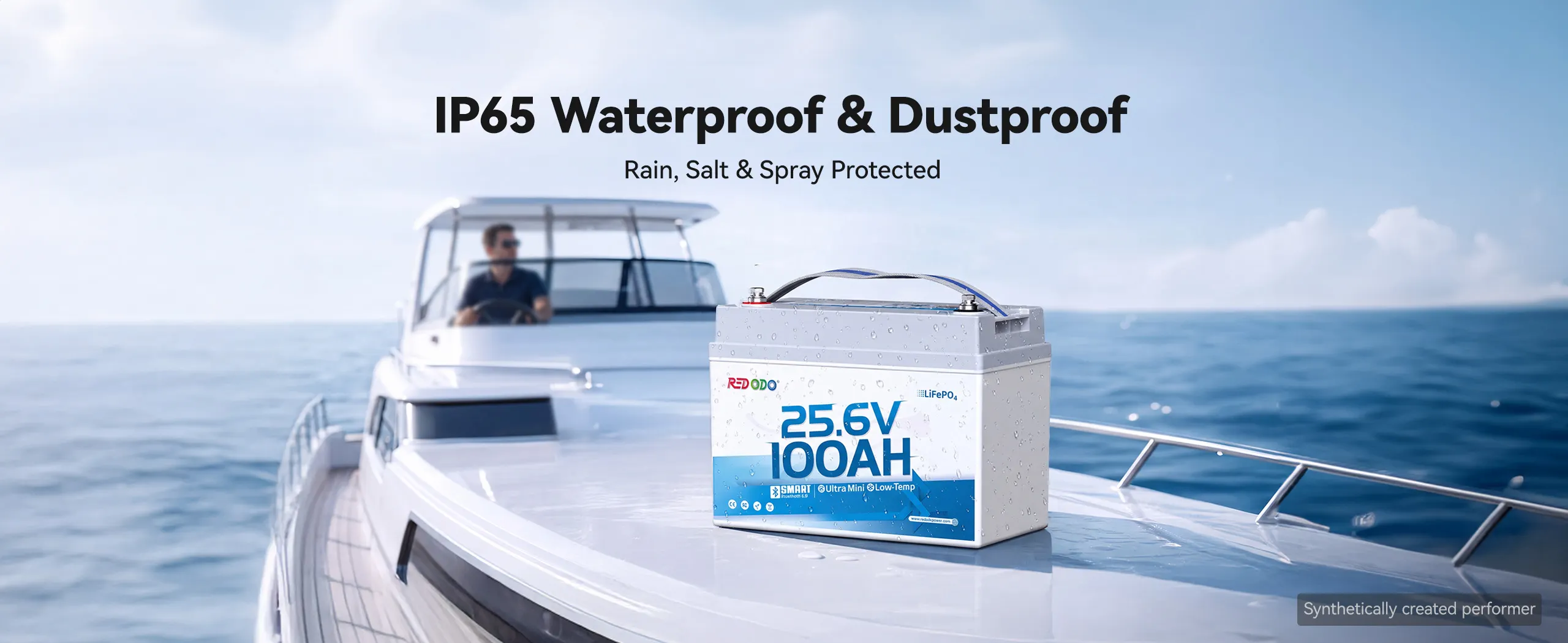

Built for Changing Weather and Marine Conditions
Fishing does not stop when temperatures drop or conditions get rough. With low-temperature charging protection and IP65 water-resistant construction, Redodo is engineered to handle cold mornings, rain, spray, and demanding marine environments season after season.

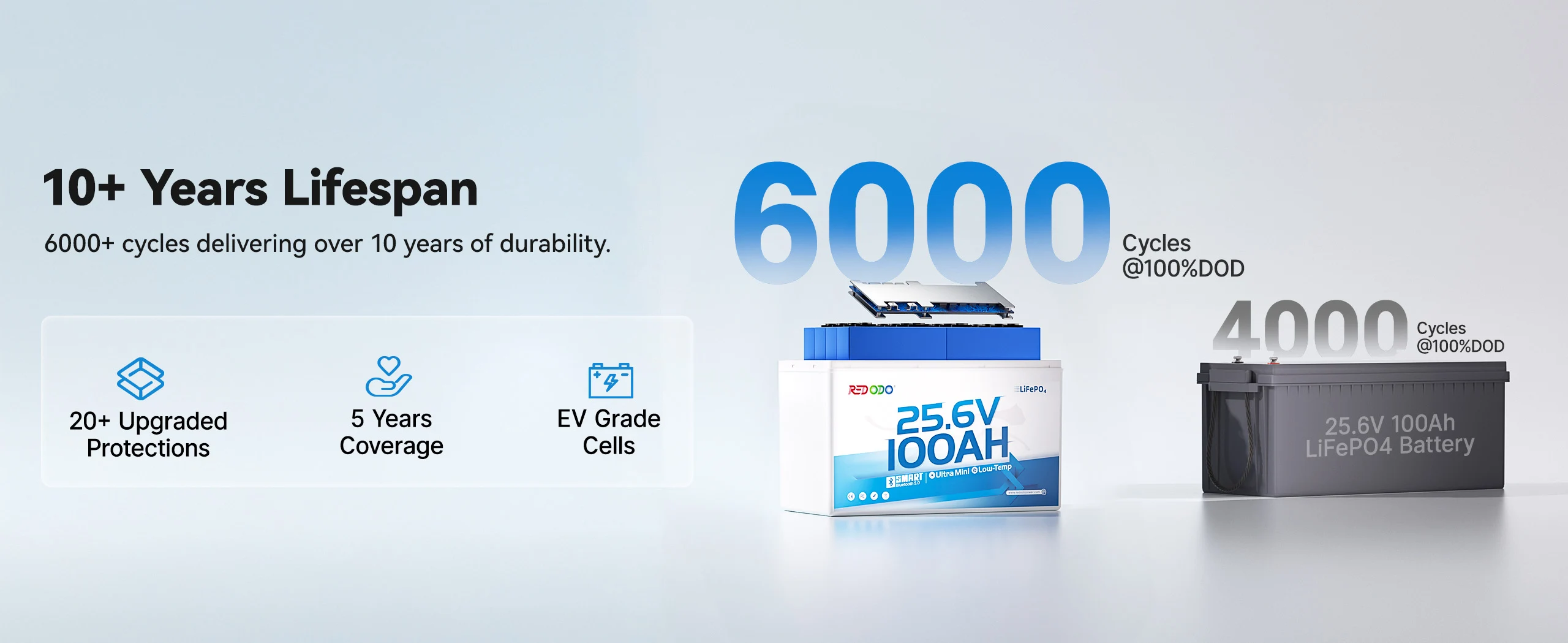

Engineered for Years of Fishing Adventures
Built with EV-grade LiFePO4 cells and an intelligent battery management system, Redodo delivers long-lasting performance with 6000+ cycles. More than just a fishing battery, it is a reliable power solution designed for years of outdoor use.

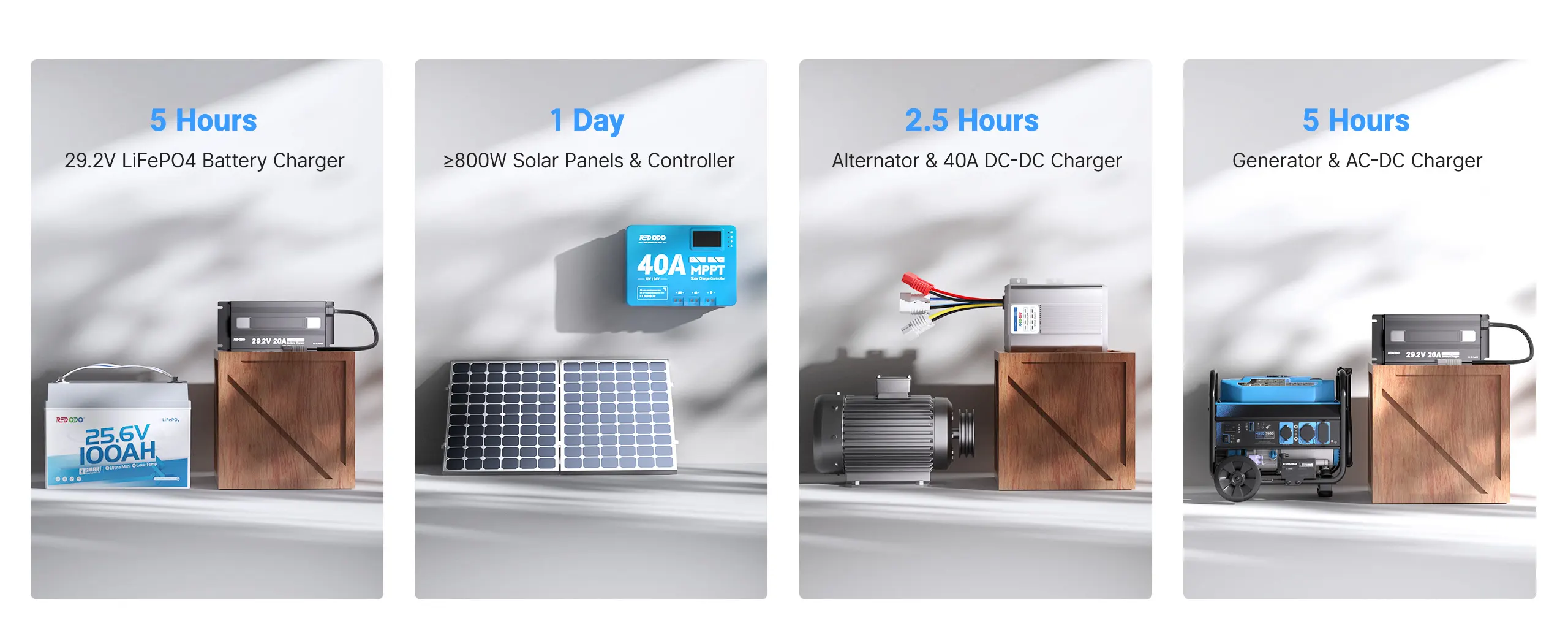

5 Hours to Full: Charge Faster, Adventure Sooner

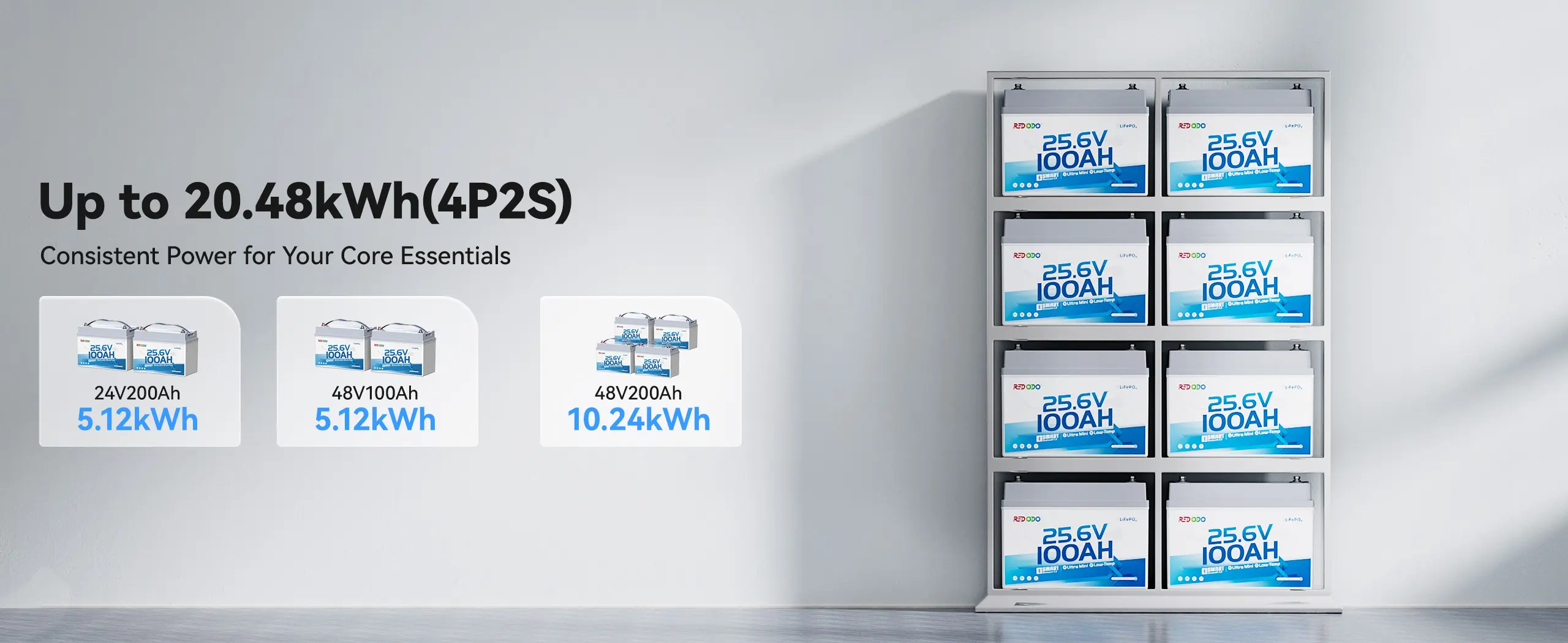

Expand When You Need More Power
Your power needs can grow over time. With expandable configurations up to 20.48kWh, Redodo provides a flexible energy foundation that can support future off-grid solar systems, farm equipment, cabins, and backup power applications.
Join the Redodo Family
Where Every Purchase is Backed by Care and Quality
SPECS
BATTERY
Cell Type：
LiFePO4
Warranty：
5 Years
Cycle Life：
6000 Cycles at 100% DOD
Nominal Voltage：
25.6V
Rated Capacity：
100Ah
Energy：
2560Wh
Max. Expansion (Parallel & Series)：
4P2S
Internal Resistance：
≤40mΩ
Certifications：
CE, RoHS, UN38.3, FCC ID
Bluetooth：
√
BMS
BMS：
100A
Max. Continuous Output Power：
2560W
Max. Continuous Charge Current：
100A
Max. Continuous Discharge Current：
100A
CHARGE
Charge Method：
CC/CV
Charge Voltage：
28.8V ± 0.4V
Recommend Charge Current：
20A
TEMPERATURE
Charge Temperature：
0°C to 50°C / 32°F to 122°F
Discharge Temperature：
-20°C to 60°C / -4°F to 140°F
Storage Temperature：
-10°C to 50°C / 14°F to 122°F
Low-Temperature Protection：
√
Low-Temperature Charging Protection Auto Recovery：
≥41°F/5°C
OTHERS
Terminals：
M8 Bolts
Weight Approx.：
44.09 lbs
Size：
L13.11*W6.93*H9.45 inch
Housing Material：
ABS
Protection Class：
IP65
FAQ
Q: I have a 24V trolling motor. Is this battery the right choice for my setup?
A:
The Redodo 24V 100Ah Group 31 lithium battery is designed for 24V trolling motor systems using 70–100 lb thrust motors, making it an ideal upgrade for bass boats, bay boats, jon boats, and pontoons.
With 2560Wh of lithium energy and stable 24V output, it delivers reliable power for extended days on the water, helping anglers maintain consistent trolling performance from morning launches to evening fishing.
Q: Will this battery fit in my boat’s existing battery compartment?
A:
The Redodo 24V 100Ah battery features a compact Group 31-style footprint with dimensions of
L13.11*W6.93*H9.45 inch.
It fits most open BCI Group 31 battery trays and is designed to maximize available boat space.
Please note: This battery is designed for Group 31 trays only, not fits standard Group 31 battery boxes.
We recommend checking your available installation space before purchase.
Q: What charger should I use for this 24V LiFePO4 battery?
A:
For the best charging performance, we recommend using the Redodo 24V 20A Mini LiFePO4 Battery Charger.
A dedicated lithium charger provides the correct charging profile for LiFePO4 batteries and helps ensure safe, efficient charging.
Q: Can this battery be used as a boat starting battery?
A:
No.
This battery is designed for deep-cycle marine applications, including:
- Trolling motors
- Electric propulsion systems
- Marine electronics
It is not intended for engine starting or cranking applications. A dedicated starting battery should be used for engine ignition (Marine Cranking Batteries).
Q: Can this battery replace two 12V 100Ah AGM or lead-acid batteries?
A:
Yes.
The Redodo 24V 100Ah battery is designed as a direct upgrade for 24V trolling motor systems that currently use two 12V batteries connected in series.
Replacing two AGM batteries with one lithium battery helps you:
- Reduce battery weight
- Simplify wiring
- Save valuable boat space
- Gain longer cycle life
It provides the same 24V system voltage with a more compact and efficient lithium design.
