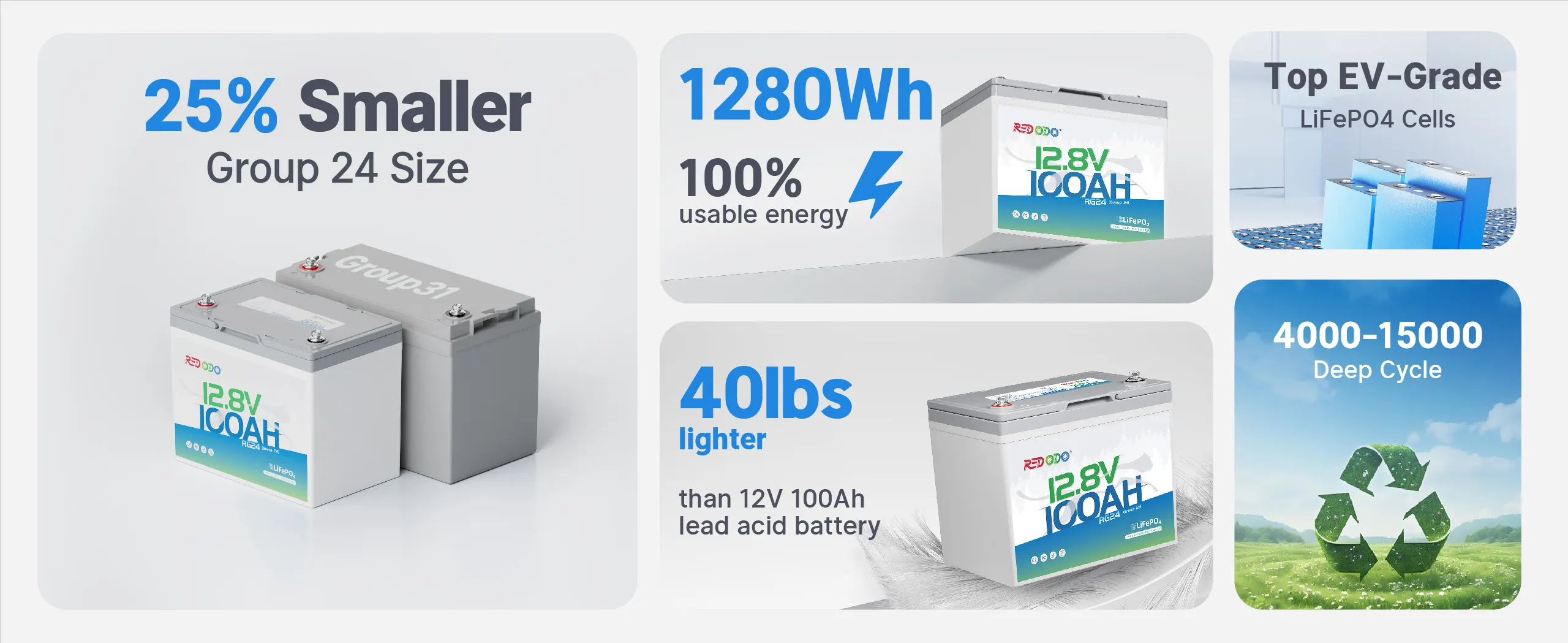

Redodo 12V 100Ah group 24 Deep Cycle Battery with grade A cells & smart 100A BMS
Redodo 12V 100Ah battery Max. 1280Wh energy output
DIY RV power system for your long trip
Redodo 12V 100Ah group 24 Deep Cycle Battery can install unlimitedly
Redodo 12V 100Ah group 24 Deep Cycle Battery services
2 pieces Redodo 12V 100Ah group 24 Deep Cycle Batteries
4 pieces Redodo 12V 100Ah group 24 Deep Cycle Batteries

⚡【Membership Price $165】Redodo 12V 100Ah Group 24 LiFePO4 Deep Cycle Battery

$179.99 $388.99
🔥 Subscribe or Join Membership to enjoy an 8% OFF from Nov. 1st to Nov. 18th. And you will get a chance to get free gift T-Shirt, 12v 12Ah or Others. Start Early, Stay Powered!

  • Order today, expected to be delivered onNov 08 - Nov 12

  • Free shipping, tax (vary by region) will be calculated at checkout

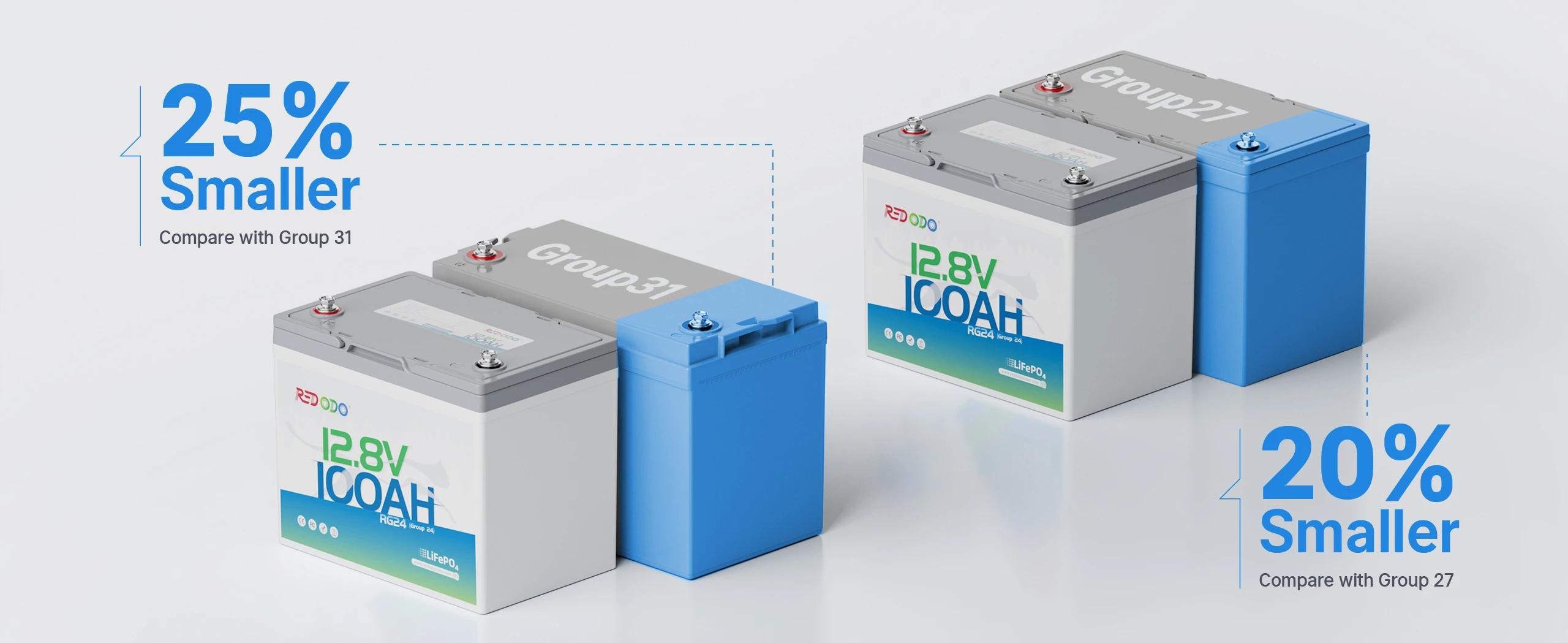

【25% Size Reduced, Equivalent 1.28kWh Energy】Redodo 12V 100Ah group 24 deep cycle battery is upgraded to downsize for seamless compatibility of BCI Group 24 Size, 25% smaller than Redodo 12V 100Ah LiFePO4 Battery Group 31, well suited for diverse motorhome battery casing- Group 24/27/31 battery box. Size is upgraded without any change in energy which is still 1.28kWh, boosting the energy density by over 40%. Compact yet powrful, fueling your energy lifestyles.

【Ideal Substitute for Group 24 Battery】Redodo upgraded 12V 100Ah group 24 battery dimensions is designed based on Group 24 size, assuring g a perfect compatibility of the minimum size for a RV battery. It can smoothly replace your lead acid battery without extra wirings. Convenient and hassle-free transition to a green energy source. Besides, Redodo 100Ah rv battery support to expand your battery bank via series-parallel connection, maximum support 4S4P to be a 51.2V 400Ah battery system, can be widely used for home energy storage, UPS system, marine, boat, camping and etc.

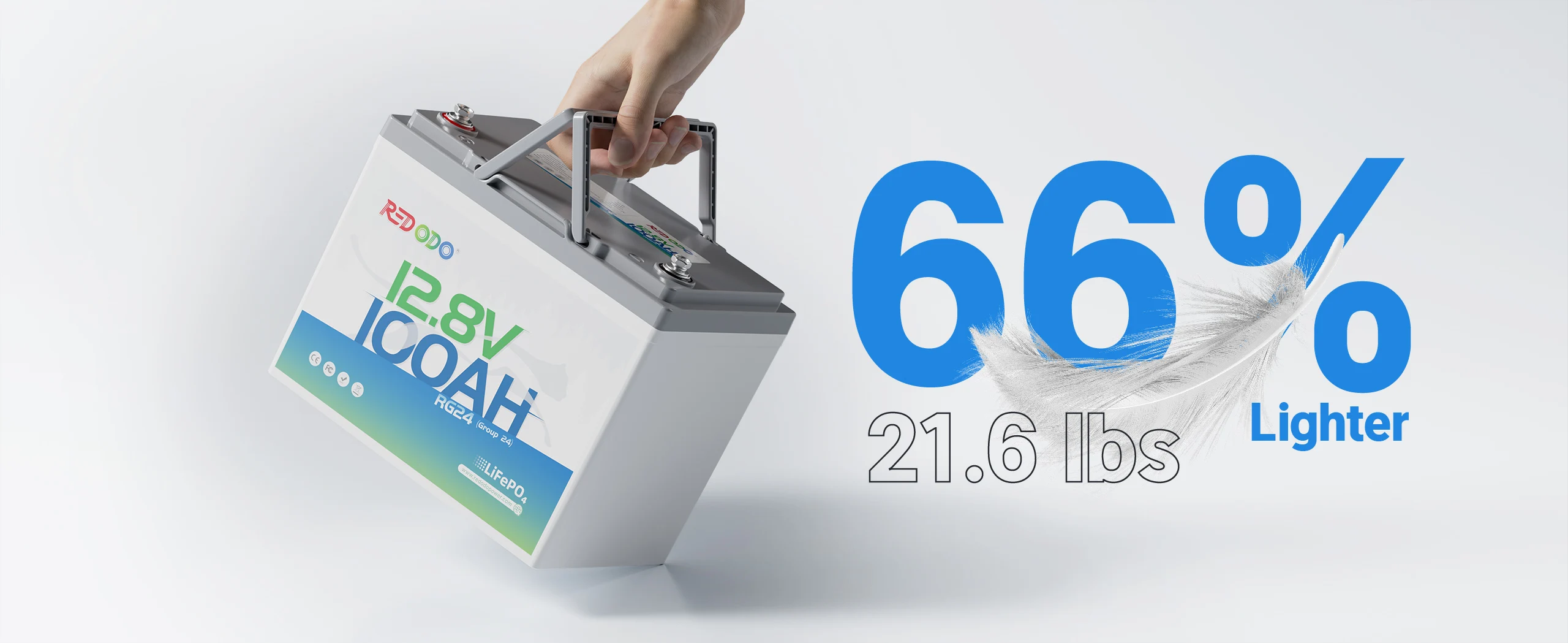

【2/3 Lighter & 7.5X Higher Energy Density】Redodo 12V 100Ah group 24 batteries weigh only 21.6lbs, 2/3 lighter than the weight of 12V 100Ah AGM battery (63.9lbs). Moreover, compare to 12V 70Ah battery with the same Group 24 size, Redodo 12V 100Ah group 24 lithium battery with 1280Wh energy capacity is equivalent to 2.5 * 70A AGM batteries' energy capacity(12*70*60%*2.5=1260Wh), accomplish 7.5X higher energy density. Save more on energy costs to enjoy life!

【 Built in100A BMS & Grade A Cells】Redodo group 24 deep cycle batteries is built in 100A BMS to prevent the damage of 100Ah lithium battery from overcharging, overdischarging, shoirtcurrent, hightemp and overcurrent, realize comprehensive protection for the battery. Assemble with top-tier battery cells to guarantee stable battery performance, low self-discharging rate and fulfill 4000 cycles @100% DOD, 6000 cycles(@80% DOD), 15000 cycles(@60% DOD). With 10 years lifespan empower you no more budget on frequent battery replacements.

【Trolling Motor Compatibility】Recommended for use with 30~70 lbs thrust trolling motors. This battery is NOT suitable for use as a starter battery, golf cart battery, or for high-power applications such as water pumps, electric jacks, elevator lifts, pool vacuums, or mowers.
Quantity: One
One
2 Pack
4 Pack
Only 17 item(s) left in stock!

  • FEATURES

  • SPECS

  • FAQ

  • REVIEWS

Redodo Black Friday Sale

⭐️⭐️⭐️⭐️⭐️
"Perfect for My Ham Radio Setup!"
Robert

As a ham radio operator, I needed a reliable battery to get me through the day on the mountains while working HF. I pushed this battery at 100 watts from my FT450D, and I never had a low battery issue. It’s exactly what I needed!

⭐️⭐️⭐️⭐️⭐️
"Impressive Performance for My Bass Boat!"
Stan

I have a 19-foot bass boat with an 80 lb thrust 24V trolling motor. I switched to Redodo 100Ah Group 24 batteries, and they’ve been great. After a full day of fishing, the voltage stays high enough for another day without recharging.

Experience Double the Runtime


Difference Between LiFePO4 Batteries and Lead-Acid After 2 Years

LiFePO4 batteries have the advantages of higher energy density, longer cycle life, lower self-discharge rate, etc., which enables LiFePO4 batteries to maintain good performance after long-term use.
Tips: The conversion efficiency of the inverter is about 90%

Group 24 LiFePO4 battery
12V 100Ah Group 24 deep cycle LiFePO4 battery
weight of Group 24 battery
Group 24 lithium battery for RV camping
Group 24 lithium battery for trolling motor
Redodo lithium battery BMS
Group 24 deep cycle battery up to 4P4S
charging a Group 24 deep cycle battery

What's in the Box

SPECS

BATTERY
Cell Type：
LiFePO4
Warranty：
5 years
Cycle Life：
4000+
Nominal Voltage：
12.8V
Rated Capacity：
100Ah
Energy：
1280Wh
Max. Expansion (Parallel & Series)：
4P4S
Internal Resistance：
≤40mΩ
Certifications：
UL1973，CE, FCC, RoHS, UN38.3
BMS
BMS：
100A
Max. Continuous Output Power：
1280W
Max. Continuous Charge Current：
100A
Max. Continuous Discharge Current：
100A
Surge Discharge Current：
400A
CHARGE
Charge Method：
CC/CV
Charge Voltage：
14.4±0.2V
Recommend Charge Current：
20A（0.2C）
TEMPERATURE
Charge Temperature：
0°C to 50°C/32°F to 122°F
Discharge Temperature：
-20°C to 60°C/-4°F to 140°F
Storage Temperature：
-10°C to 50°C/14°F to 122°F
OTHERS
Terminals：
M8
Weight Approx.：
21 lbs
Size：
L10.24*W6.61*H8.30 inch
Housing Material：
ABS
Protection Class：
IP65

FAQ

Q: What is a Group 24 Battery?

A:

A Group 24 battery refers to a specific size category defined by the Battery Council International (BCI), commonly used in RVs, boats, and other vehicles. These batteries are designed to meet certain physical dimensions for compatibility across various applications.

The Redodo 12V 100Ah Group 24 battery is built to meet the exact size requirements of a Group 24 battery, ensuring perfect compatibility as an RV battery. With dimensions of L10.24 x W6.61 x H8.30 inches, this deep cycle battery has been downsized to seamlessly fit the BCI Group 24 standard. It is 25% smaller than the Redodo 12V 100Ah LiFePO4 Battery Group 31, making it an ideal fit for a wide range of motorhome battery cases, including Group 24, 27, and 31 battery boxes.

Q: Can I use a 12V 100Ah Group 24 as a starter battery?

A:

We do not recommend using Redodo Group 24 batteries as starter batteries. Starter devices generate a high current during startup, which can cause the Battery Management System (BMS) to cut off power for protection. Over time, repeated exposure to high startup currents may damage the BMS, leading to degradation or even failure of the battery system.

Q: What's the difference between your 12V 100Ah Mini and 12V 100Ah Group 24 Battery? Is it just about the size?

A:

The difference between the 12V 100Ah Mini and the 12V 100Ah Group 24 batteries is not just about size.

  • 12V 100Ah Group 24 Battery: This battery is made of prismatic cells and follows the Group 24 size standard.
  • 12V 100Ah Mini Battery: This battery is made of pouch cells, which are smaller and lighter compared to traditional LiFePO4 batteries.

Q: I am looking to replace my Group 24 DC lead-acid batteries. What size Redodo battery would be suitable?

A:

Our 12V 100Ah Group 24 battery is specifically designed to be a perfect replacement for Group 24 lead-acid batteries. It's ideal for caravanners and others who have previously used lead-acid batteries in their applications.

Q: Does the Group 24 battery's performance match that of the Group 31 LiFePO4 (Redodo 12V 100Ah Basic)?

A:

Yes, the 12V 100Ah Group 24 battery offers the same performance as the 12V 100Ah Group 31 battery. Both have 1280Wh of energy capacity and support up to 1280W of load power with a 100A BMS. The primary difference between the two is size, not performance.

Q: Can Redodo Group 24 battery be connected in series and parallel with a 12V 100Ah Basic battery?

A:

We do not recommend connecting the Group 24 and 12V 100Ah Basic batteries in series or parallel. The internal cells and structures are different, which can lead to poor system performance and shorten the overall battery life when connected together.
