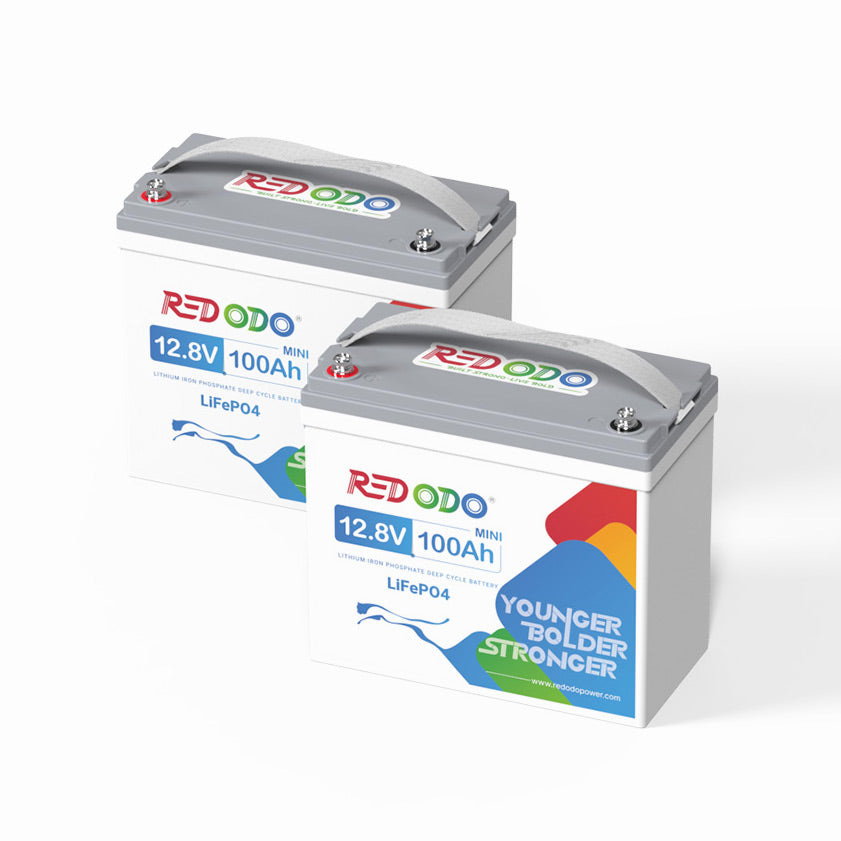

2 pieces 12V 100Ah Mini LiFePO4 batteries

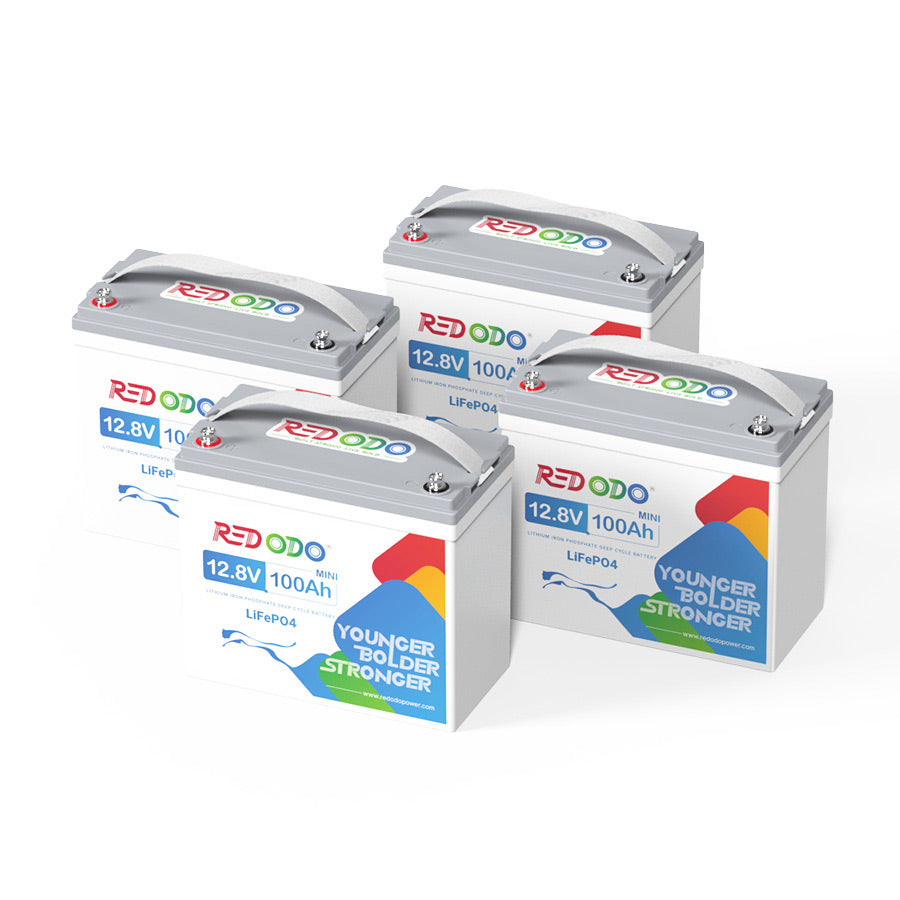

4 pieces 12V 100Ah Mini LiFePO4 Batteries
🎄【Xmas Member Price $211】12V 100Ah Mini - the Smallest Lithium LiFePO4 Battery

🎄【Xmas Member Price $211】12V 100Ah Mini - the Smallest Lithium LiFePO4 Battery

$229.99 $399.99
🔥 Extra 5% Off Sitewide for Christmas! Join Membership and Get 8% Off. Last Sale of 2024 – Don't Miss Out!

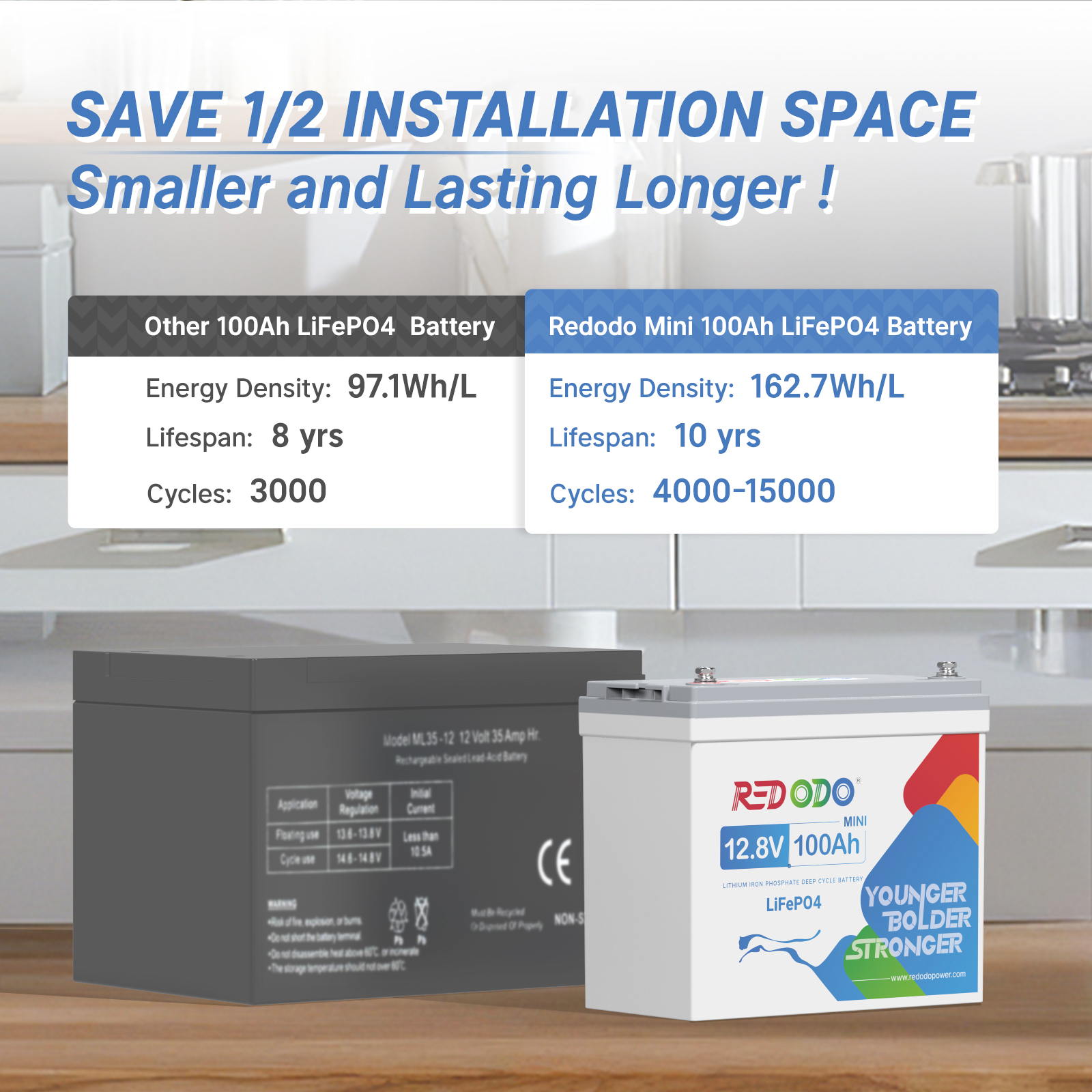

35% Smaller in Mini Size: The Redodo 12V 100Ah MINI lithium battery stands out as the smallest lithium battery, measuring just 10.23 x 5.23 x 8.95 inches. It's 35% smaller than your standard 12V 100Ah Group 31 battery and 14% smaller than a typical 12V 100Ah Group 24 battery. Our ultra-compact design ensures you'll never stress about space again.

18% Lighter with 22% Increased Energy Density: Weighing in at just 19.84 lbs, the Redodo small 12V battery is remarkably 18% lighter than standard 12V 100Ah lithium ion battery, yet it delivers the same energy output of 1280Wh! Not to mention, the Mini LiFePO4 battery is 69% lighter compared to other 100Ah lead-acid batteries. Installation is a breeze. You can mount it in any orientation you like – even upside down – without a second thought about space or limitations.

Ultra Reliable & All Round Safe: Equipped with an upgraded 100A BMS, the Redodo 12V 100Ah MINI LiFePO4 Battery provides comprehensive protection against overcharge, overdischarge, overcurrent, short circuits, and high temperatures. Housed in our customized IP65-rated case with a matte surface and portable handles, this small lithium battery ensures reliable protection from dust and water splashes,making it suitable for all your outdoor activities.

10-Year Lifetime & 4000+ Long Cycles: The Redodo 12V 100Ah MINI lithium-ion battery boasts over 4000 cycles and a 10-year lifetime, supported by a 5-year warranty and lifetime technical support. Plus, every 12V 100Ah lithium-ion battery undergoes 100% testing before shipping, manufactured with Grade A LiFePO4 Cells, and the highest level of safety based on UL/UN38.3/FCC/CE/ROHS testing certificates. Get it without any worries.

Max. 20.48kWh System Expansion: Easily expandable to a massive 51.2V 400Ah LiFePO4 battery system, providing 20.48kWh of energy output, it's the best small deep cycle battery for RVs, boats, camping, and solar home systems. Please note, it's specifically designed for energy storage purposes, not for use as starter or golf cart batteries. Additionally, it's compatible with 30~70 lbs trolling motor.

*Please note, this battery is NOT suitable for use as a starter battery, golf cart battery, or for high-power applications such as water pumps, electric jacks, elevator lifts, pool vacuums, or mowers.
  • Free shipping, expected to be delivered onDec 24 - Dec 28

Quantity: 1 Pack
1 Pack
2 Pack
4 Pack
1 Pack (New Design)
Only 5 item(s) left in stock!

  • PayPal
  • Apple
  • Google
  • MasterCard
  • VISA
  • AMEX
  • Klarna
  • Discover
  • ShopPay
  • Free& Fast Delivery in 2-5 Days
  • 5-Year Hassle Free Warranty
  • Lifetime Customer Support
  • 30-Day Money-Back Guarantee
  • FEATURES

  • SPECS

  • COMPARE

  • FAQ

  • REVIEWS

We Are #1 in LiFePO4 Deep Cycle Batteries

More and more RV owners and off-grid living enthusiasts are choosing Redodo over any other battery brands. They choose us for our high-quality standards in building lithium batteries, our genuinely satisfying after-sales service, and our ongoing innovation in lithium battery technology.

small 12V lithium battery

Real User Feedback: Why Our Lithium Iron Phosphate Batteries Stand Out

⭐️⭐️⭐️⭐️⭐️

"Compact, Lightweight, and Built to Last!"
MEC

This battery is noticeably smaller and less than half the weight of my previous "95Ah" Group 27 deep discharge flooded lead-acid battery, which only lasted 5 years.

⭐️⭐️⭐️⭐️⭐️

"Outstanding Performance for My Sump Pump!"
Joe Bonhage

This battery powered a 1/3 HP sump pump, cycling every 15 minutes for about 34 hours, and still had 20% charge left.

Trusted by Experts: In-Depth Review of Redodo LiFePO4 Batteries

Experience Double the Runtime

Difference Between LiFePO4 Batteries and Lead-Acid After 2 Years

LiFePO4 batteries have the advantages of higher energy density, longer cycle life, lower self-discharge rate, etc., which enables LiFePO4 batteries to maintain good performance after long-term use.
Tips: The conversion efficiency of the inverter is about 90%

small 12V lithium battery
mini lithium battery lighter 18%
lightweight 12V lithium battery

Power Your Setup, Your Way

small lifepo4 lithium battery for home backup
12V 100Ah mini lithium battery energy

Battery Management System

High-Quality LiFePO4 Cells

Sturdy Customized Case

Charging Methods

installation of 12V Mini lithium battery

*This battery is NOT suitable for use as a starter battery, golf cart battery, or for high-power applications such as water pumps, electric jacks, elevator lifts, pool vacuums, or mowers.

mini size lithium battery for home solar, RV, Trolling motor

What's in the Box:

Redodo 12V 100Ah Mini Lithium Battery Unboxing

Redodo Ensures You Receive the Highest Quality, Every Time!

SPECS

BATTERY
Cell Type:
LiFePO4
Warranty:
5 years
Cycle Life:
4000 times (25°C,0.2C,100% DOD)
Nominal Voltage:
12.8V
Rated Capacity:
100Ah
Energy:
1280Wh
Max. Expansion (Parallel & Series):
4P4S
Internal Resistance:
≤40mΩ
Certifications:
UL1973,CE, FCC, RoHS, UN38.3
Bluetooth:
NO
BMS
BMS:
100A
Max. Continuous Output Power:
1280W
Max. Continuous Charge Current:
100A
Max. Continuous Discharge Current:
100A
Surge Discharge Current:
400A
CHARGE
Charge Method:
CC/CV
Charge Voltage:
14.4±0.2V
Recommend Charge Current:
20A (0.2C)
TEMPERATURE
Charge Temperature:
0℃ to 50℃ / 32℉ to 122℉
Discharge Temperature:
-20℃ to 60℃ / -4℉ to 140℉
Storage Temperature:
-10℃ to 50℃ / 14℉ to 122℉
Low-Temperature Protection:
NO
Low-Temperature Charging Protection Auto Recovery:
NO
SELF-HEATING
Heating Temperature:
NO
OTHERS
Terminals:
M8
Weight Approx.:
19.84lbs
Size:
L10.24*W5.24*H8.96 inch
Housing Material:
ABS
Protection Class:
IP65

COMPARE

Cell Type
Warranty
Cycle Life
Nominal Voltage
Rated Capacity
Energy
Max. Expansion (Parallel & Series)
Certifications
BMS
Charge Method
Charge Voltage
Recommend Charge Current
Low-Temperature Protection
Terminals
Weight Approx.
Size

🎄【Xmas Member Price $211】12V 100Ah Mini - the Smallest Lithium LiFePO4 Battery

$229.99 $399.99
Add to cart
🎄【Xmas Member Price $211】12V 100Ah Mini - the Smallest Lithium LiFePO4 Battery
LiFePO4
5 years
4000 times (25°C,0.2C,100% DOD)
12.8V
100Ah
1280Wh
4P4S
UL1973,CE, FCC, RoHS, UN38.3
100A
CC/CV
14.4±0.2V
20A (0.2C)
NO
M8
19.84lbs
L10.24*W5.24*H8.96 inch

🎄【Xmas Member Price $165】Redodo 12V 100Ah Lithium Battery, the most Affordable LiFePO4 Battery

$179.99 $279.99
Add to cart
🎄【Xmas Member Price $165】Redodo 12V 100Ah Lithium Battery, the most Affordable LiFePO4 Battery
LiFePO4 Prismatic
5
4000 times (25°C,0.2C,100% DOD)
12.8V
100Ah
1280Wh
4P4S
UL1973,CE, FCC, RoHS, UN38.3
100A
CC/CV
14.4士0.2V
20A (0.2C)
NO
M8
25 lbs
L13*W6.77*H8.43 inch

🎄【Xmas Member Price $165】Redodo 12V 100Ah Group 24 LiFePO4 Deep Cycle Battery

$179.99 $388.99
Add to cart
🎄【Xmas Member Price $165】Redodo 12V 100Ah Group 24 LiFePO4 Deep Cycle Battery
LiFePO4 Prismatic
5 years
4000 times (25°C,0.2C,100% DOD)
12.8V
100Ah
1280Wh
4P4S
UL1973,CE, FCC, RoHS, UN38.3
100A
CC/CV
14.4±0.2V
20A(0.2C)
NO
M8
21 lbs
L10.24*W6.61*H8.30 inch

🎄【Xmas Member Price $174】Redodo 12V 100Ah Lithium LiFePO4 Trolling Motor Battery With Low Temp Protection

$189.99 $339.99
Add to cart
🎄【Xmas Member Price $174】Redodo 12V 100Ah Lithium LiFePO4 Trolling Motor Battery With Low Temp Protection
LiFePO4 Prismatic
5
4000 times (25°C,0.2C,100% DOD)
12.8V
100Ah
1280Wh
4P4S
UL1973,CE, FCC, RoHS, UN38.3
100A
CC/CV
14.4士0.2V
20A (0.2C)
YES(<0℃/32℉)
M8 Terminals
22.15 Pounds
L13*W6.77*H8.43 inch

FAQ

Q: Can the Mini 12V 100Ah lithium ion battery be connected in series and parallel?

A:

Yes, Redodo 12V 100Ah Mini LiFePO4 battery can connect in 4S4P. That will be a 48V 400Ah system.

But please balance the battery voltage, type, BMS, and capacity before connecting.

Q: How are the 12V 100Ah mini lithium batteries made smaller and lighter? Is there any loss of function with the smaller battery?

A:

Our 12V 100Ah Mini battery is identical to the 12V 100Ah basic model in terms of performance. It is just different in size and weight.

Our small 12V batteries have soft-packed cells as well as stacked placement for a more compact space.

Q: Does the small 12V battery have low-temperature charging cutoff protection?

A:

Our 12V 100Ah Mini LiFePO4 batteries do not have low-temperature protection.

However, our batteries can be used below 32℉ (they can be discharged normally), but we do not recommend charging them below 32℉.


This is the recommended operating temperature range for our 12V100Ah mini batteries: Charging: 32℉ to 122℉; Discharging: -4℉ to 140℉.

Many of our customers live in cold regions and like to use our batteries because they discharge well and their consumers can operate at low temperatures. When they need to recharge their batteries, they bring them indoors (at temperatures above 32℉).
