What is a Battery Monitor and Why Do I Need One?

07/08/2024

A battery monitor is a crucial tool for anyone relying on batteries, whether in your RV, boat, or solar power setup. By keeping a close watch on the health and performance of your batteries, you can prevent failures, extend battery life, and ensure your batteries always in a healthy situation, In this article, let’s dive into what a battery monitor is, how it works, and why you need one.

What is a Battery Monitor?

A battery monitor is a device that provides real-time information about the state of charge, voltage, and current of a battery. It is commonly utilized in compact, mobile devices like RVs, boats, and off-grid solar systems. This enables users to monitor their batteries' performance and verify that they are operating correctly.

At its core, a battery monitoring system is like a health monitor for your batteries. It constantly checks key parameters such as:

  • Voltage: The electrical potential difference between two points in the battery.
  • Current: The flow of electric charge in or out of the battery.
  • Temperature: The heat level of the battery cells.
  • State of Charge (SoC): The remaining capacity of the battery, often expressed as a percentage.

By monitoring these parameters, the system provides real-time data and alerts, helping you maintain your battery's health and state.

How Does a Battery Monitor Work?

There are typically two types of battery monitors: shunt-based and voltage-based.

Shunt-Based Battery Monitors

Shunt-based battery monitors are designed for precision. They utilize a shunt resistor that is integrated in series with the battery. When current flows through this resistor, it generates a voltage drop proportional to the current, enabling the monitor to calculate the battery's consumption accurately. By integrating this current over time, a shunt-based monitor can effectively determine the state of charge (SOC) and estimate remaining battery capacity.

In addition to measuring current, shunt-based battery monitors also provide insights into other critical parameters, such as battery voltage and temperature. This multifaceted approach allows for a more robust understanding of the battery’s overall health and performance. Applications requiring highly accurate current measurement, such as electric vehicles and renewable energy systems, often favor shunt-based monitors for this very reason.

Redodo shunt-based battery monitors

Voltage-Based Battery Monitors

On the other hand, voltage-based battery monitors provide a more straight-forward solution. They estimate the battery’s state of charge and capacity by evaluating the terminal voltage against a pre-determined voltage vs. SOC curve. Though these monitors are simpler and typically more affordable—making them popular choices for consumer electronics like smartphones and laptops—they may lack the precision of their shunt-based counterparts.

Voltage-based monitoring systems are also prevalent in automotive applications. While they might not provide the same level of detail in measurements, they still offer essential information helpful in preventing overcharging and excessive discharge, thus contributing to the longevity of the battery.

By making an informed choice between shunt-based and voltage-based options, you can enhance your battery’s lifespan and reliability, ultimately optimizing your power management strategy.

Applications of Battery Monitors

Battery monitors are used in various applications, including:

RV Battery Monitoring Systems: For managing deep cycle batteries used in recreational vehicles. They ensure that automotive batteries remain healthy and reliable.

Marine Battery Monitoring Systems: For managing and monitoring marine batteries used in boats to ensure each trip is smooth.

Lithium Battery Monitoring Systems: Critical for managing the sensitive lithium-ion batteries used in electric vehicles and portable electronics.

Lead Acid Battery Monitoring Systems: Used in automotive, backup power, and industrial applications to manage lead-acid batteries.

Wide Applications of Battery Monitors

Funtions of Battery Monitors

Battery monitors play a crucial role in managing and optimizing battery performance, making them essential for both personal and commercial applications. Here are some functions of a battery monitor:

  • Monitoring Battery Health: One of the key functionalities of battery monitors is health tracking. They continuously assess important parameters such as state of charge (SOC), state of health (SOH), and remaining capacity. This information allows users to identify potential issues early, such as degradation or capacity loss, which can lead to timely interventions like calibration or replacement.
  • Optimizing Battery Performance: Battery monitors help optimize performance by analyzing voltage, current, and temperature under various conditions. This data empowers users to adjust power settings and adopt energy-saving practices, ultimately extending battery life and improving efficiency.
  • Precising Current Measurement: Shunt-based monitors offer accurate readings of current flow, which are vital for applications requiring exact measurements, such as electric vehicles and renewable energy systems.
  • Predictive Maintenance: Battery monitors support predictive maintenance by detecting early signs of failure. By monitoring key parameters, users can anticipate problems and take corrective actions before they escalate, thereby avoiding unexpected downtime and costly repairs.
  • Real-time Monitoring: The real-time monitoring capabilities allow for immediate alerts when parameters exceed safe thresholds. This proactive approach helps prevent damage and ensures the reliability of systems dependent on battery power.

The Redodo 500A Shunt-based battery monitor offers comprehensive and powerful monitoring capabilities for your battery, providing real-time data on various critical parameters. This includes current voltage, current, power, capacity, capacity level, capacity percentage, and remaining charge/discharge time.

Is Battery Monitor the Same as Battery Management System (BMS)?

It’s easy to get confused between a battery monitor and a battery management system (BMS), but they serve slightly different purposes.

A battery monitor primarily focuses on tracking the state of the battery, providing data on voltage, current, temperature, and SoC. However, a BMS includes monitoring functions but also actively manages the battery's charge and discharge cycles, cell balancing, and safety mechanisms. It ensures all cells in a multi-cell battery are equally charged and discharged, preventing any one cell from overworking or underperforming.

Additionally, BMSs are commonly integrated into lithium batteries themselves, whereas battery monitors are typically separate entities that need to be externally connected.

In simpler terms, a battery monitor keeps an eye on things and tells you what’s happening, while a BMS takes action to ensure battery operates safely and efficiently.

Redodo lithium batteries are all equipped with BMS providing over-charging, over-discharging, over-current, over-temperature, and short-circuit protection. Check out 12V lithium batteries series and 24V lithium batteries series to learn more details.

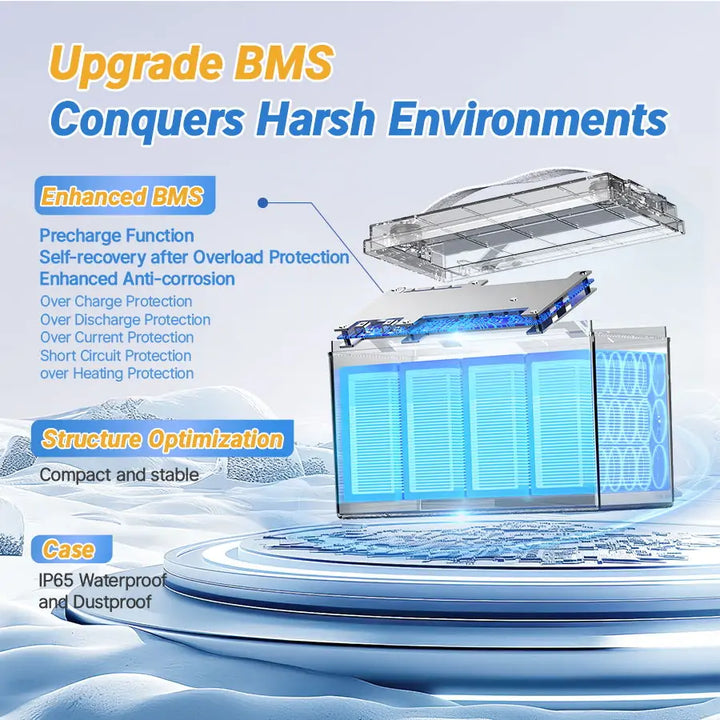

Upgrated Lithium Battery Management System

Read More: What is LiFePO4 Battery Management System?

Monitor Your Battery Online: Redodo Bluetooth Lithium Battery

Battery monitor systems are very useful, however, in some situations, such as boats and RVs, you may want to make your battery monitor more portable.

Choosing lithium batteries with Bluetooth like Redodo 12V Smart Bluetooth Lithium Battery can greatly enhance your ability to manage and maintain your battery. Its comprehensive monitoring, advanced features, and Bluetooth connectivity make it the best option for anyone looking to keep their battery in top condition.

Real-Time Battery Monitoring with the Redodo App

The Redodo Smart Bluetooth Lithium Battery can significantly enhance your battery management experience. This advanced battery integrates seamlessly with the Redodo App, providing real-time insights and control over your battery’s performance.

The built-in Bluetooth connectivity of the Redodo 12V 100Ah Bluetooth battery allows you to easily connect to the Redodo App on your smartphone. By connecting your Redodo lithium battery to the app, you can unlock a wealth of essential data, including remaining capacity, cycle count, voltage, and current.

The comprehensive datas help you understand how your battery is performing, ensuring it stays in optimal condition. You can monitor the charging and discharging status in real time, providing peace of mind and helping you to make informed decisions about your battery usage.

Real-Time Battery Monitoring with the Redodo App

Whether you’re using it in an RV, boat, or for a solar power system, the Redodo Smart Bluetooth Lithium Battery offers the reliability and functionality you need for effective battery management.

Monitor the Battery Without Bluetooth Function

Not all battery monitoring systems come with Bluetooth functionality, but you can still effectively monitor your battery using other methods.

If your battery lacks Bluetooth, you can consider using Redodo 500A Shunt-based battery monitor. The monitor connects directly to the battery, allowing you to view real-time data on voltage, current, and state of charge without the need for wireless connectivity. This setup is reliable and provides immediate access to critical battery information.

Redodo Shunt-based battery monitor come with integrated displays that show real-time data directly on the device. It features a LCD screen display, which is easy to read and can provide all the information you need at a glance without additional equipment, even in low-light conditions.

What’s more, the Redodo 500A battery monitor incorporates alarms and notifications to ensure the utmost safety and awareness. When the voltage or capacity falls below the set value, the LCD display will flash and raise the alarm. The battery monitor compatible with various types of battery: LifePO4, lithium-ion, and lead acid batteries.

Redodo universal battery monitor with alarm functions

Another alternative is manual checking. Regularly using a multimeter to measure voltage and current can give you a good idea of your battery’s health. Although this method is less convenient than using a dedicated monitor, it is effective and can be a good backup in case your main monitoring system fails.

FAQs on Battery Monitors

1. How to reset my battery monitor?

Resetting your battery monitor can resolve issues and recalibrate the device. Here’s how you can do it:

  • Power Off: Turn off the battery monitor.
  • Disconnect: Unplug the monitor from the battery and any power sources.
  • Wait: Leave it disconnected for a few minutes.
  • Reconnect: Reconnect the monitor to the battery and power sources.
  • Power On: Turn the monitor back on and check if it has reset.

This simple process can often clear up any glitches and get your system back to normal.

2. Can a battery monitoring system prevent battery failure?

Yes, by providing real-time data and alerts, a battery monitoring system can help prevent battery failure by ensuring the battery operates within safe parameters.

3. How often should I check my battery monitoring system?

Regularly check your battery monitoring system, ideally once a week, to ensure optimal performance and address any potential issues early.

4. Can I use a battery monitor for any type of battery?

Most battery monitors are designed for specific battery types, such as lithium-ion or lead-acid. Ensure you use a compatible system for your battery type.

5. What conditions do battery monitoring systems typically look at?

Battery monitors typically look at conditions such as voltage levels, temperature, state of charge, current flow, and overall battery health to ensure proper functioning and safety. They are all important conditions to monitor in battery systems.
