How To DIY A Solar Power Station for Solar Beginners?

21/12/2022

I would like to report on the construction of a self-built solar powerstation, which proves that even a layman like me can build without prior knowledge.

The main components are:

  • Two 12V/100Ah/1280Wh rechargeable batteries.
  • 12/220V 1000W sine wave voltage converter.
  • Solar charger 40A.
  • Two 100W solar panels, but I will expand to four panels in the near future.
  • A battery voltmeter.
Redodo 12v 100ah lifepo4 battery Solar power station

The system consists of three parts, namely the power station box, the solar charger and two LiFePO4 batteries. The LiFePO4 batteries can be changed in seconds and no tools are needed.

The Powerstation Box holds one of the two batteries while the other can be charged or used for other purposes. This means you only need to transport the batteries, not the entire Powerstation Box.

The two batteries are connected by alligator clips for quick replacement without tools. The cable is short and 25qmm, which is thicker than the 100A requirement. The cable plug is M8 and the alligator clips are specified for 100 A.

I have placed a couple of fuses so everything is safe. Anyway, components like LiFePO4 batteries and inverters have their own built-in safety devices. These batteries have a built in BMS and safe non flammable LiFePO4 technology so I don't have to worry about using them at home. This battery technology gives me a charge cycle rate of over 2000, which makes them more durable than typical LiFePO4 cells.

There are several batteries on the market that fit my purpose and specifications, but in the end I went with Redodo Power (same as Zooms) because they have some good reviews and value for money.

Thanks to the 12V voltage, nothing will happen if you accidentally touch a pole, while the dangerous 220V voltage is housed entirely within a commercial voltage converter. The box weighs about 14 kg, which is light considering its 1280Wh capacity.

The entire self-built modular power station is much cheaper than a commercial power station. The modules include - two interchangeable batteries - a charge controller module - a power station box. The batteries can be quickly interchanged between the power station box and the solar charging module. While one battery is in use, the other battery can be recharged.

In addition, it is easy to build a second power station box. These batteries can also be used directly for 12V DC equipment such as camping, car or RV equipment. Additional batteries can easily be added to the setup. If you want to charge the batteries conventionally from a power source, you can simply connect them to a separate commercially available battery charger.

Redodo lifepo4 deep cycle battery Redodo lifepo4 battery

Redodo 12V 100Ah lifepo4 Redodo 100ah battery

There are many instructional videos available on the Internet. Because of their flexibility, self-build power stations can be scaled up as needs change. For my purposes, 1000W is more than enough. If you only need 500 watts, it is cheaper to use smaller components and thinner cables.

I use the following Youtube video as my main source of information.

DIY Solar Power with Will Prowse:

- Build Your First Solar Power System! Beginner Tutorial Easily Explained, Budget Friendly

- DIY 400 Watt 12 volt Solar Power System Beginner Tutorial: Great for RV's and Vans! *Part 1*

- DIY 400 Watt Solar Power System Beginner Tutorial *Part 2*

- $399 100Ah 12V "Zooms" LiFePO4 Battery Review -Not Sponsored-



Brian Waters:

- DIY Solar Power Station | Easy for beginner | 1200 Watts, REDODO 200AH + LIFEPO4



Shop Redodo 12V 100Ah LiFePO4 battery

How To DIY A Solar Power Station for Solar Beginners?

Redodo

Redodo is an innovative brand specializing in LiFePO4 (Lithium iron phosphate) batteries for outdoor adventures, aiming to provide efficient and cost-effective outdoor energy solutions while ensuring a great user experience.
Next Post
How To DIY A Solar Power Station for Solar Beginners?

Redodo

Redodo is an innovative brand specializing in LiFePO4 (Lithium iron phosphate) batteries for outdoor adventures, aiming to provide efficient and cost-effective outdoor energy solutions while ensuring a great user experience.

Recent Post

What is the best RV battery and How to Choose it?

What is the best RV battery and How to Choose it?

25/12/2024
What Are Cold Cranking Amps (CCA)?

What Are Cold Cranking Amps (CCA)?

20/12/2024
How Long Do RV Batteries Last: Type & Factors & Maintain

How Long Do RV Batteries Last: Type & Factors & Maintain

16/12/2024
What is a 12V Battery? Types, Sizes & More

What is a 12V Battery? Types, Sizes & More

11/12/2024
Lithium vs. Flooded Lead-Acid vs. AGM: Which is the Best Battery?

Lithium vs. Flooded Lead-Acid vs. AGM: Which is the Best Battery?

05/12/2024

Related Products

Redodo 40A MPPT 12V/24V Solar Charge Controller

Redodo 40A MPPT 12V/24V Solar Charge Controller

$139.99
Buy Now

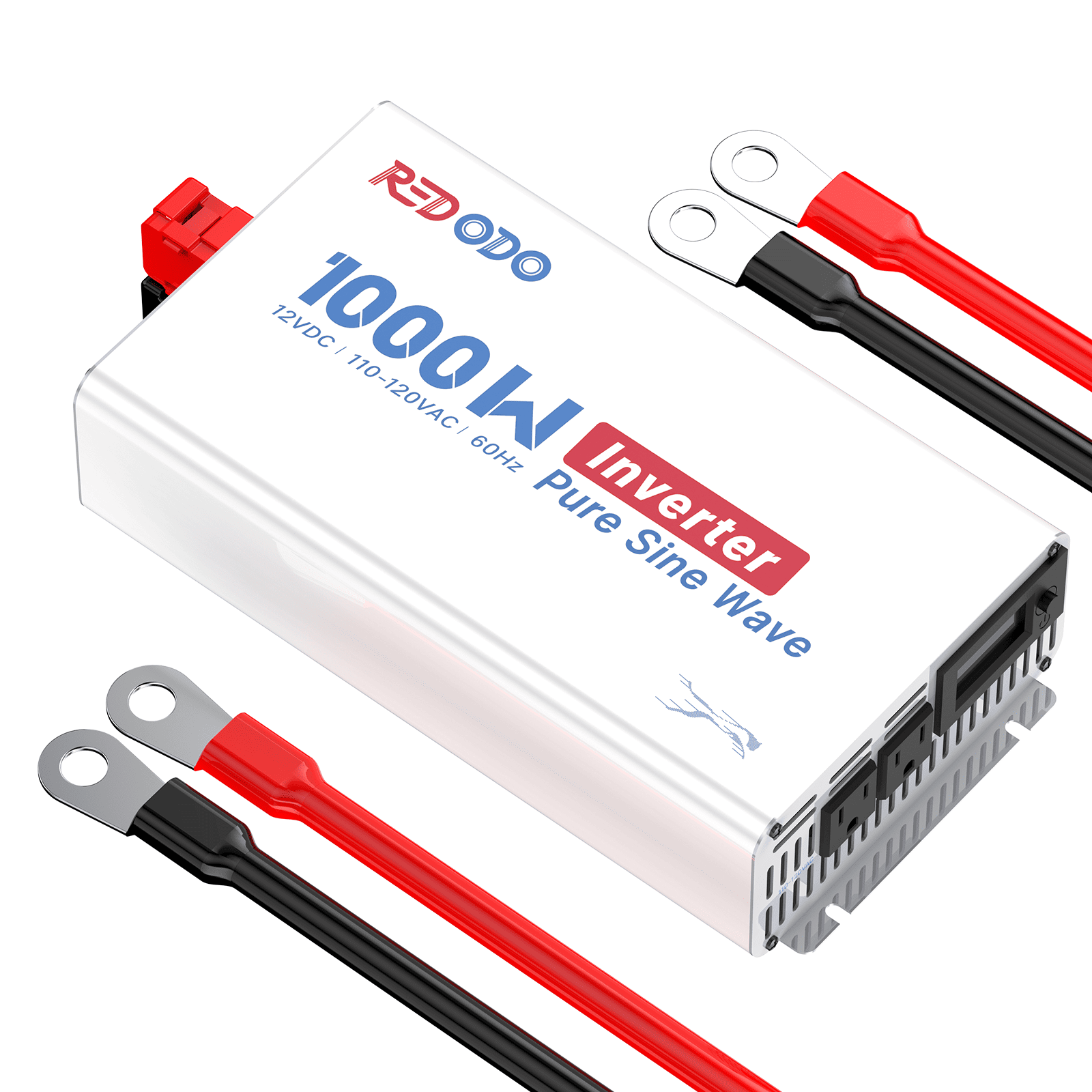

Redodo 1000W Pure Sine Wave Inverter with Digital LCD Screen

Redodo 1000W Pure Sine Wave Inverter with Digital LCD Screen

$108.99
Buy Now
Redodo 14.6V 40A Handle LiFePO4 Battery Charger

Redodo 14.6V 40A Handle LiFePO4 Battery Charger

$139.99
Buy Now

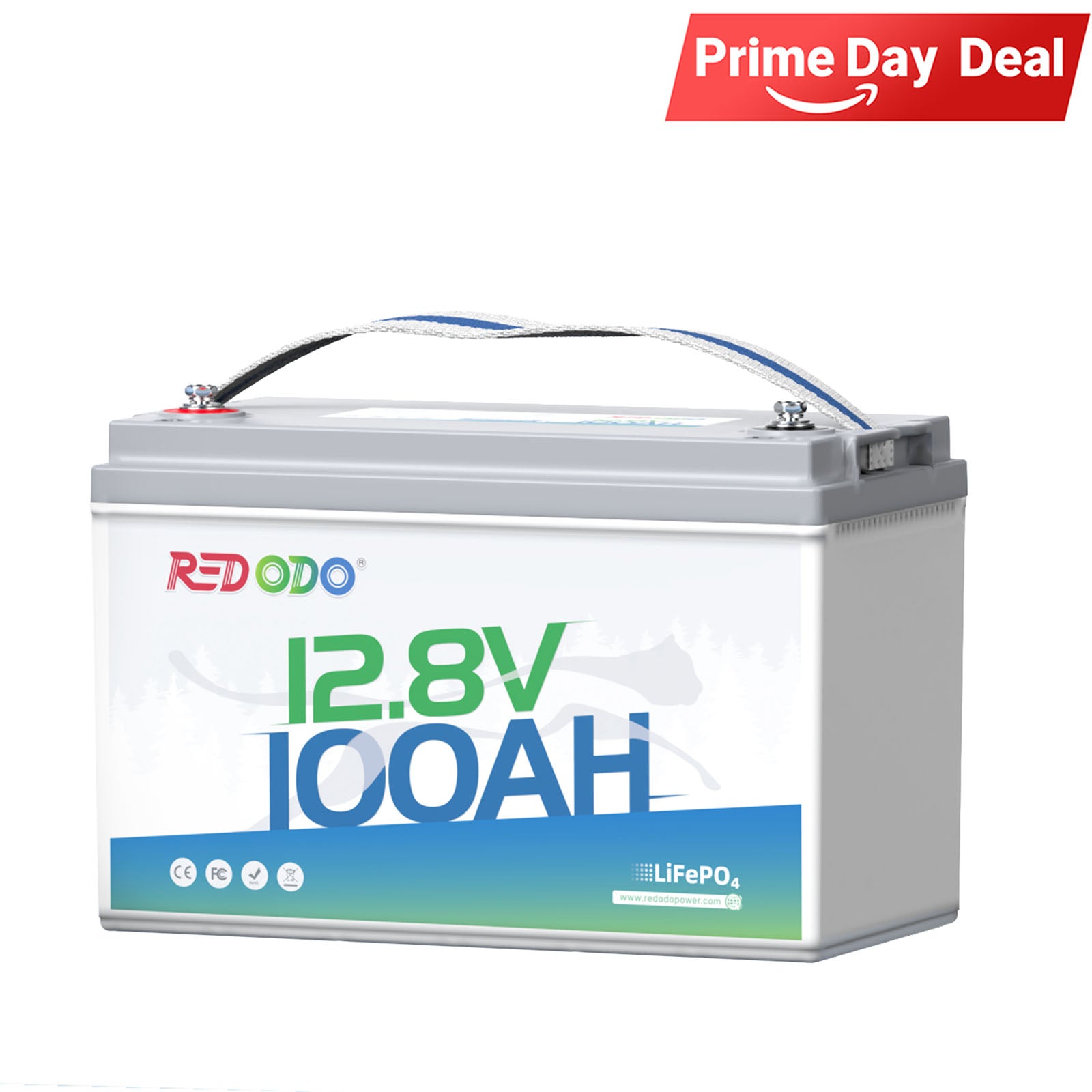

🎄【Xmas Member Price $165】Redodo 12V 100Ah Lithium Battery, the most Affordable LiFePO4 Battery

🎄【Xmas Member Price $165】Redodo 12V 100Ah Lithium Battery, the most Affordable LiFePO4 Battery

$179.99
Buy Now

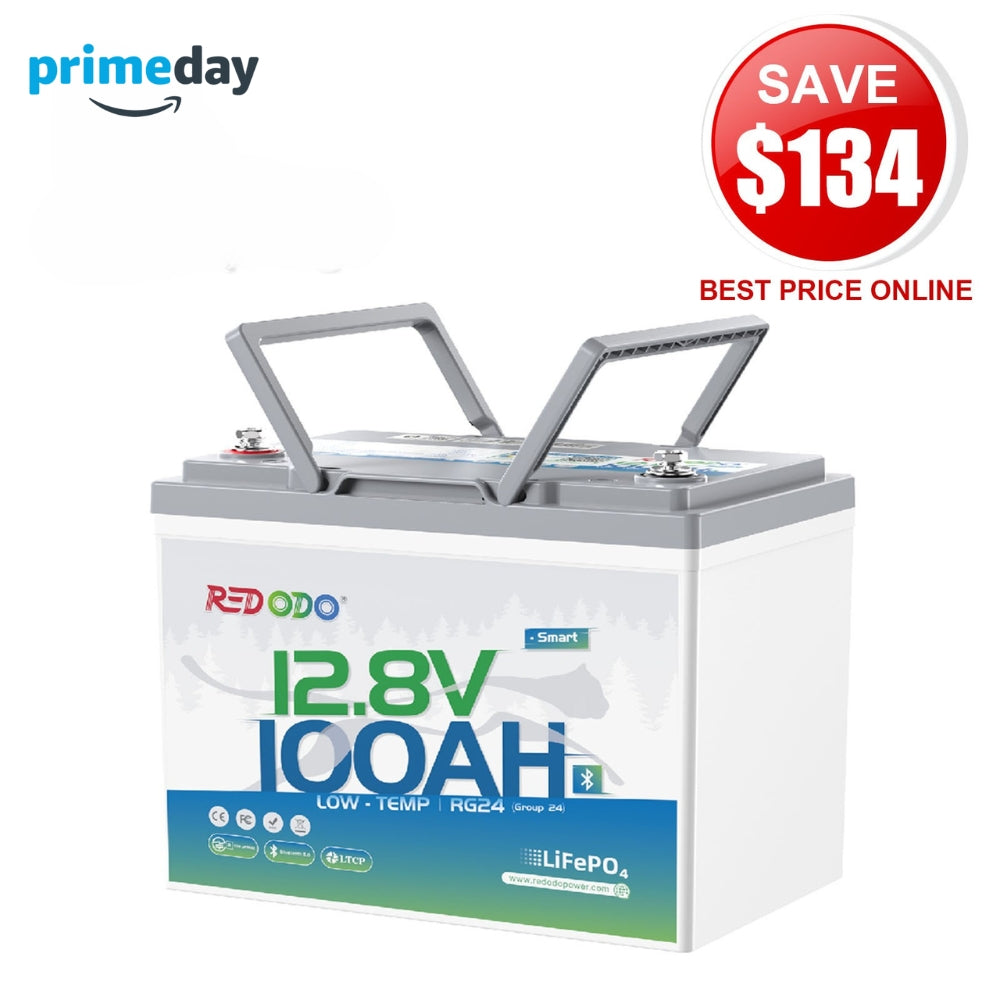

🎄【Limited Flash Sale - Xmas Member Price $183】Redodo 12V 100Ah Group 24 Smart Bluetooth LiFePO4 Battery, Real-Time Capacity Monitoring

🎄【Limited Flash Sale - Xmas Member Price $183】Redodo 12V 100Ah Group 24 Smart Bluetooth LiFePO4 Battery, Real-Time Capacity Monitoring

$199.99
Buy Now
🎄【Xmas Member Price $193】Redodo 12V 100Ah Group31 Smart Bluetooth Lithium LiFePO4 Battery with Real-Time Capacity Monitoring

🎄【Xmas Member Price $193】Redodo 12V 100Ah Group31 Smart Bluetooth Lithium LiFePO4 Battery with Real-Time Capacity Monitoring

$209.99
Buy Now

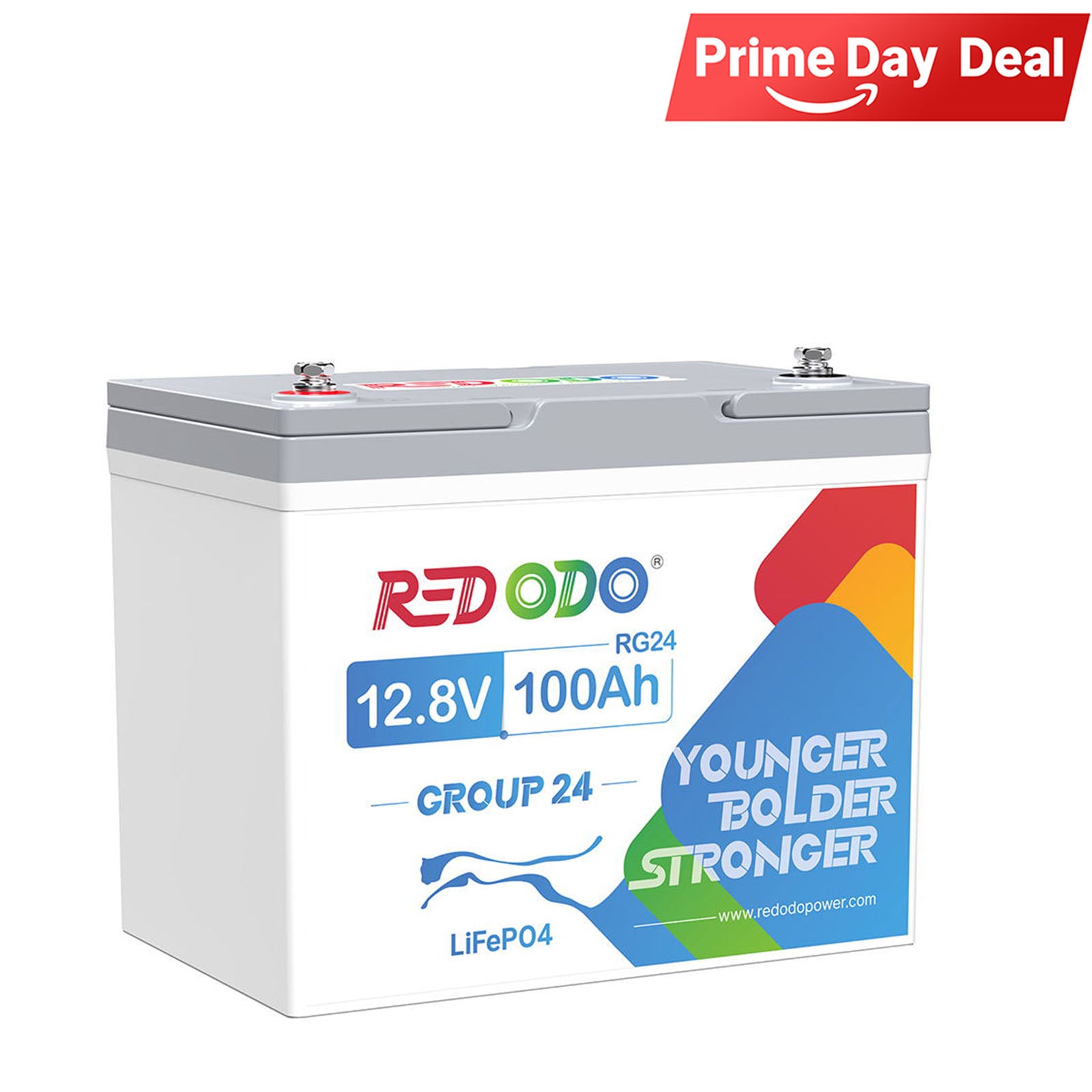

🎄【Xmas Member Price $165】Redodo 12V 100Ah Group 24 LiFePO4 Deep Cycle Battery

🎄【Xmas Member Price $165】Redodo 12V 100Ah Group 24 LiFePO4 Deep Cycle Battery

$179.99
Buy Now

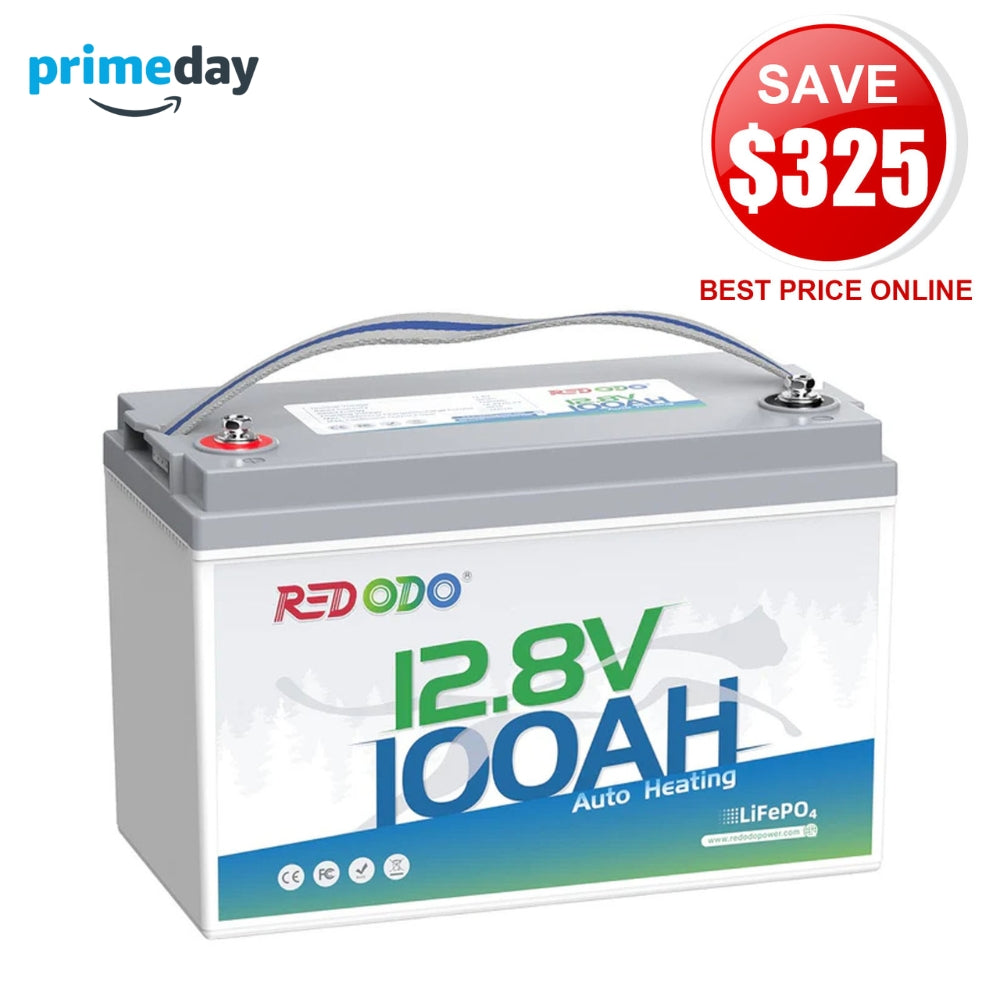

🎄【Limited Flash Sale - Xmas Member Price $202】Redodo 12V 100Ah Self-Heating Deep Cycle Lithium Battery

🎄【Limited Flash Sale - Xmas Member Price $202】Redodo 12V 100Ah Self-Heating Deep Cycle Lithium Battery

$219.99
Buy Now

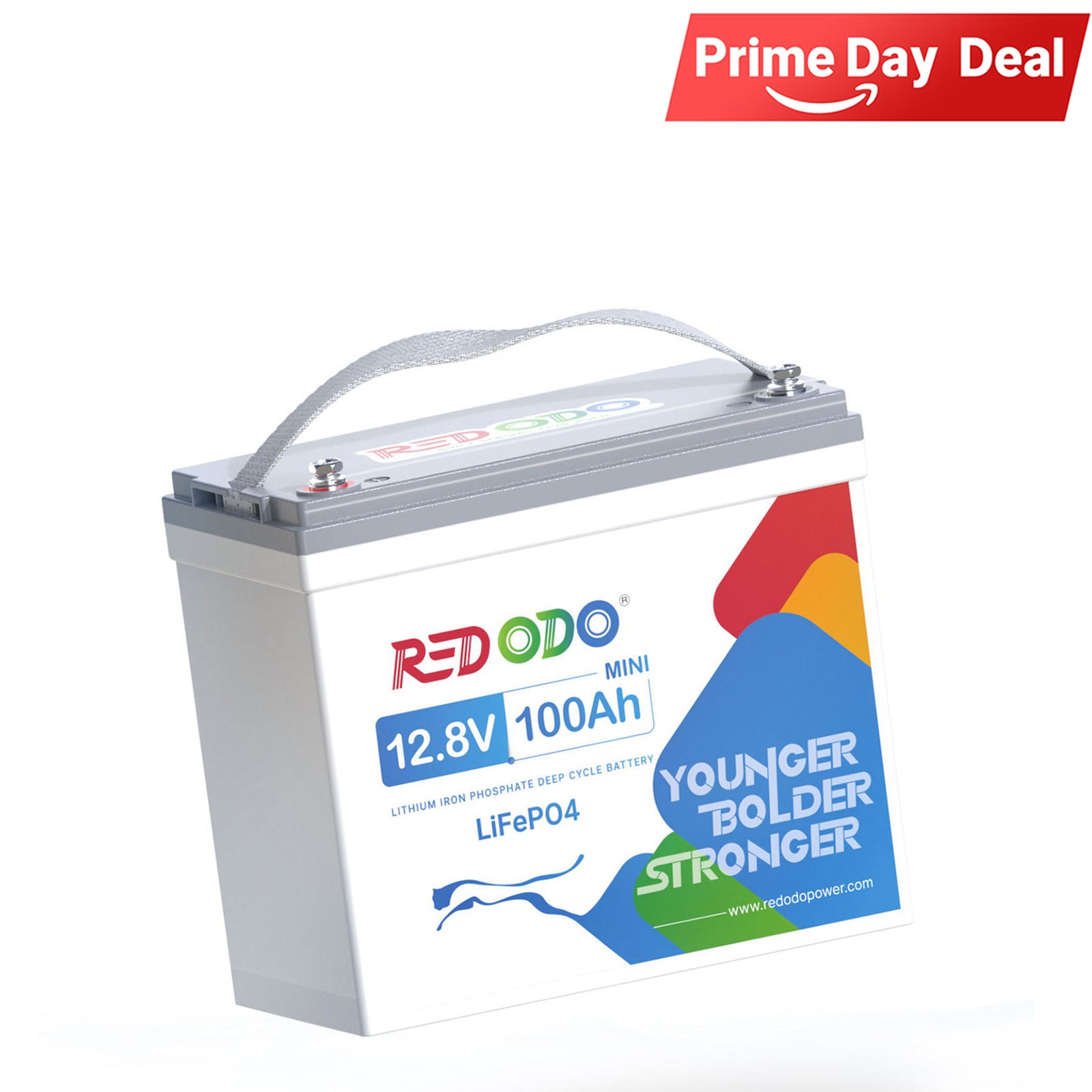

🎄【Xmas Member Price $211】12V 100Ah Mini - the Smallest Lithium LiFePO4 Battery
